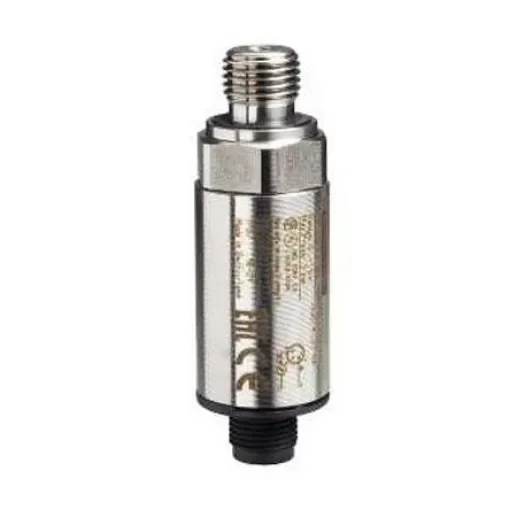

Telemecanique Sensors Pressure Switch, M12 3-Pin Connector 0 to 1bar - XMLG001D21

Maximum Operating Pressure = 0 to 1bar
Connection = M12 3-Pin Connector
Suitable Media = Air, Corrosive Fluid, Oil, Water
Voltage Rating = 24V
Connection Thread Size = M12
Manufacturer Series = OsiSense XM XMLG
Minimum Operating Temperature = -15°C
Maximum Operating Temperature = +85°C
IP Rating = IP66, IP67
Output Type = Analogbar

OsiSense XMLG Electronic Pressure Sensors. Schneider Electric XMLG pressure transmitters and pressure switches feature a ceramic pressure measuring cell. The deformation caused by the pressure is transmitted to the resistors of a Wheatstone bridge silk-screened on the ceramic. The change in resistance is then processed by the integrated electronics, providing either a digital or analog output signal. Adjustable differential 1 CO snap acting contact Temperature range: –15 to +85 °C Enclosure rating: IP66
