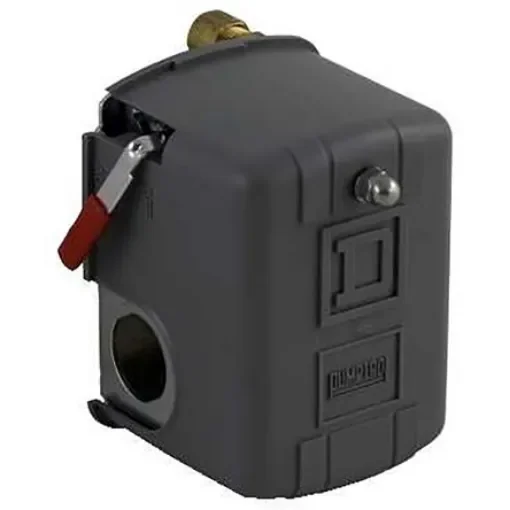

Telemecanique Sensors Pressure Switch, 15 (Approximate) psi, 20 (Rising) psi Min, 30 (Approximate) psi, 65 (Rising) psi - 9013FSG2J21M4
Reliable pressure switch for efficient water pump control, ensuring optimal performance.
Manufacturer part number: 9013FSG2J21M4
GTIN: 0785901066187
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Pressure Reading Type = Differential
Minimum Pressure Reading = 15 (Approximate) psi, 20 (Rising) psi
Maximum Pressure Reading = 30 (Approximate) psi, 65 (Rising) psi
Accuracy = ±3 (Repeat) %
Output Type = 2 NC
Media Measured = Fresh Water
Process Connection = 1/4 in NPSF
Electrical Connection = Screw Clamp
Housing Material = Noryl Thermoplastic Resin
IP Rating = IP20°F
9013 FSG PUMPTROL Water Pump Pressure Switch. Square D FSG Pumptrol series water pump pressure switches are ideal for controlling all types of electrically driven water pumps. The FSG pressure switches are diaphragm actuated and have contacts that open on rising pressure. These durable pressure switches monitor systems to start and stop a pump at pre-set pressures. NEMA Type 1 indoor enclosure 2 pole, rated 1-1/2HP @ 115 V ac, 2 HP @ 230 V ac Adjustable cut-in/out Maximum pressure 220 psig Diaphragm actuated UL, CSA Listed Mechanical life: 100000 operations
