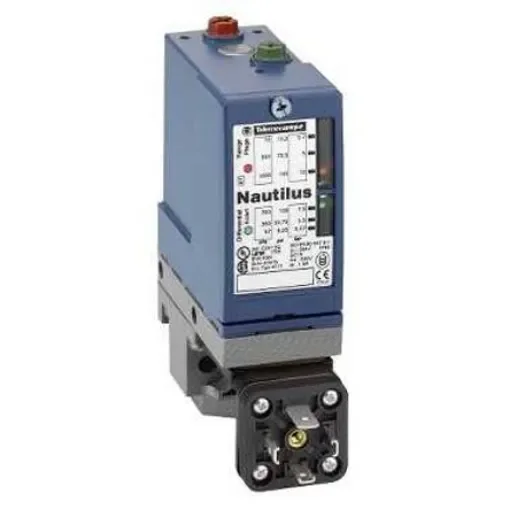

Telemecanique Sensors Pressure Switch, 10bar Min, 160bar Max, 1CO Output - XMLB160D2C11
Reliable pressure switch for hydraulic and air systems, ensuring accurate pressure control.
Manufacturer part number:
XMLB160D2C11
GTIN:
3389110714272
Only Ships to:
France, Monaco
For shipping outside these regions, please contact customer support.
Minimum Pressure Reading = 10bar
Maximum Pressure Reading = 160bar
Accuracy = <2 %
Output Type = 1CO
Media Measured = Air, Hydraulic Oil
Electrical Connection = DIN 43650A 4-Pin Male Connector
Maximum Current = 100 mA @ 250 V dc, 3 A @ 120 V ac
Supply Voltage = 240 V ac, 250 V dc
Housing Material = Zinc Alloy
IP Rating = IP65, IP66°C
OsiSense XMLB Pressure Switches. Schneider Electric XMLB pressure switches for control circuits are used to control the pressure of hydraulic oils, fresh water, sea water, air, steam, corrosive fluids, or viscous products. The XMLB pressure and vacuum switches have an adjustable differential and are for detection of a single threshold. Adjustable differential External pressure setting window available 1 NO ; 1 NC snap acting contacts Temperature range: –25 to +70 °C Enclosure rating: IP65 with plug-in connector, IP66 with terminal connections Operating rate: up to 120 operations / min. for diaphragm and 60 / min. for piston Media connection: 1/4"" NPT Conduit connection: 1/2"" NPT
