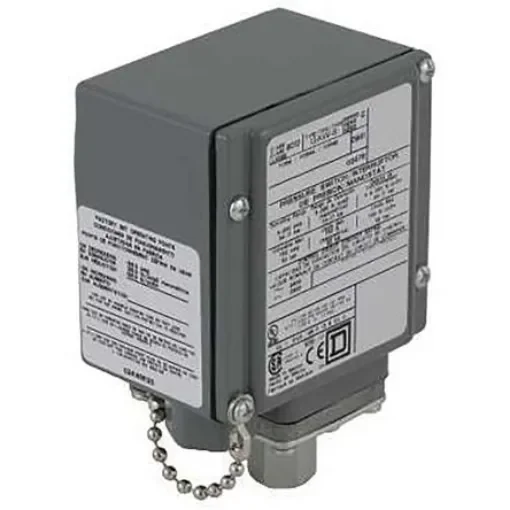

Telemecanique Sensors Pressure Switch, 1.5 (Decreasing) psi, 3.5 (Differential) psi Min, 15 (Differential) psi, 7.5 - 9012GAW4
Ensure optimal system performance with this reliable Telemecanique pressure switch.
Manufacturer part number:
9012GAW4
GTIN:
0785901024729
Only Ships to:
France, Monaco
For shipping outside these regions, please contact customer support.
Pressure Reading Type = Differential
Minimum Pressure Reading = 1.5 (Decreasing) psi, 3.5 (Differential) psi
Maximum Pressure Reading = 15 (Differential) psi, 7.5 (Decreasing) psi
Accuracy = <4 (Repeat) %
Output Type = SPDT-NO/NC
Process Connection = 1/4 in NPTF
Electrical Connection = 0.5 in NPT
Maximum Current = 6 A
Supply Voltage = 240 V ac, 250 V dc
Housing Material = Die Cast Aluminium Alloy 380
Minimum Operating Temperature = -10°F
UL, CSA. 9012 GAW Diaphragm Low Pressure Adjustable. The 9012G single stage pressure switches are control circuit rated devices. This series of switches can be used in pneumatic and hydraulic systems and on a variety of machine and process applications to protect the equipment. These pressure switches can be used to either control or monitor the system pressure. Diaphragm actuated Buna-N Nitrile diaphragm, zinc plated steel housing
