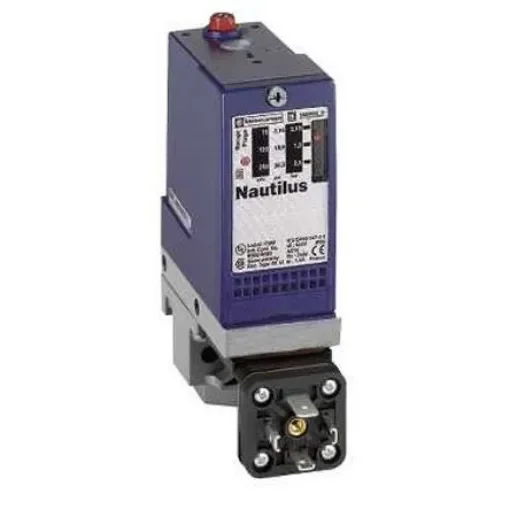

Telemecanique Sensors Pressure Switch, 0bar Min, 35bar Max, 1CO Output - XMLA035A2C11
Reliable pressure switch for hydraulic and fluid control, measuring 0 to 35bar.
Manufacturer part number: XMLA035A2C11
GTIN: 3389110749830
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Minimum Pressure Reading = 0bar
Maximum Pressure Reading = 35bar
Accuracy = 2 %
Output Type = 1CO
Media Measured = Air, Fresh Water, Hydraulic Oil, Sea Water
Electrical Connection = DIN 43650A 4-Pin Male Connector
Maximum Current = 100 mA @ 250 V dc, 3 A @ 120 V ac
Supply Voltage = 240 V ac, 250 V dc
Housing Material = Zinc Alloy
IP Rating = IP65, IP66°C
Pressure quoted is 'per cycle' and (occasional). OsiSense XMLA Pressure Switches. Schneider Electric XMLA pressure switches for control circuits are used to control the pressure of hydraulic oils, fresh water, sea water, air, steam, corrosive fluids, or viscous products. The XMLA pressure and vacuum switches have a fixed differential and are for detection of a single threshold. Fixed differential External pressure setting window available 1 NO ; 1 NC snap acting contacts Temperature range: –25 to +70 °C Enclosure rating: IP65 with plug-in connector, IP66 with terminal connections Operating rate: up to 120 operations / min. for diaphragm and 60 / min. for piston Media connection: 1/4" NPT Conduit connection: 1/2" NPT
