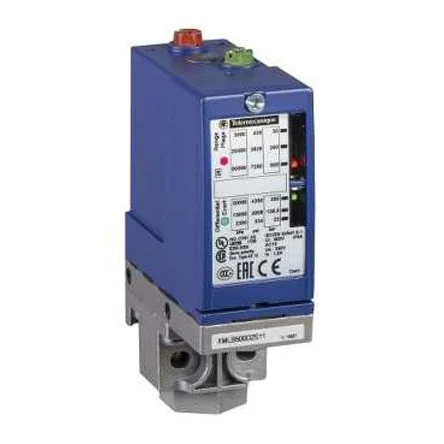

Telemecanique Sensors Pressure Switch, 0bar Min, 10bar Max, 1CO Output - XMLB010C2S11
Reliable pressure switch for corrosive fluids with adjustable settings and robust design.
Manufacturer part number: XMLB010C2S11
GTIN: 3389110713749
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Minimum Pressure Reading = 0bar
Maximum Pressure Reading = 10bar
Accuracy = 2 %
Output Type = 1CO
Media Measured = Corrosive Fluid
Electrical Connection = PG 13.5
Maximum Current = 100 mA @ 250 V dc, 3 A @ 120 V ac
Supply Voltage = 240 V ac, 250 V dc
Housing Material = Zinc Alloy
Minimum Operating Temperature = -13°C
OsiSense XMLB Pressure Switches. Schneider Electric XMLB pressure switches for control circuits are used to control the pressure of hydraulic oils, fresh water, sea water, air, steam, corrosive fluids, or viscous products. The XMLB pressure and vacuum switches have an adjustable differential and are for detection of a single threshold. Adjustable differential External pressure setting window available 1 NO ; 1 NC snap acting contacts Temperature range: –25 to +70 °C Enclosure rating: IP65 with plug-in connector, IP66 with terminal connections Operating rate: up to 120 operations / min. for diaphragm and 60 / min. for piston Media connection: 1/4"" NPT Conduit connection: 1/2"" NPT
