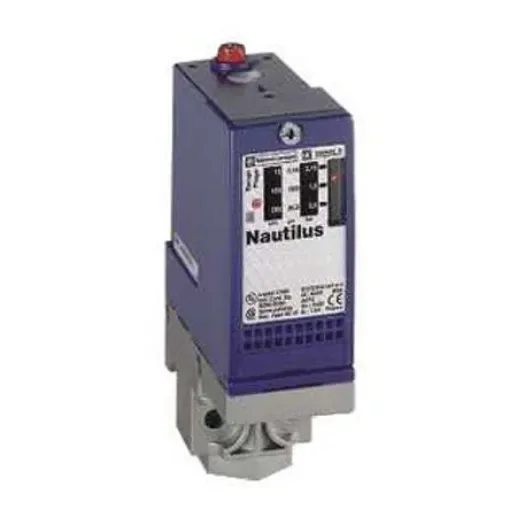

Telemecanique Sensors Pressure Switch, 0bar Min, 10bar Max, 1CO Output - XMLA010A2S13
Reliable pressure switch for air and liquids, ensuring accurate control from 0 to 10bar.
Manufacturer part number: XMLA010A2S13
GTIN: 3389110749083
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Minimum Pressure Reading = 0bar
Maximum Pressure Reading = 10bar
Accuracy = 2 %
Output Type = 1CO
Media Measured = Air, Fresh Water, Hydraulic Oil, Sea Water
Electrical Connection = 1/2 in 14 NPT
Maximum Current = 100 mA @ 250 V dc, 3 A @ 120 V ac
Supply Voltage = 240 V ac, 250 V dc
Housing Material = Zinc Alloy
IP Rating = IP65, IP66°C
Pressure quoted is 'per cycle' and (occasional). OsiSense XMLA Pressure Switches. Schneider Electric XMLA pressure switches for control circuits are used to control the pressure of hydraulic oils, fresh water, sea water, air, steam, corrosive fluids, or viscous products. The XMLA pressure and vacuum switches have a fixed differential and are for detection of a single threshold. Fixed differential External pressure setting window available 1 NO ; 1 NC snap acting contacts Temperature range: –25 to +70 °C Enclosure rating: IP65 with plug-in connector, IP66 with terminal connections Operating rate: up to 120 operations / min. for diaphragm and 60 / min. for piston Media connection: 1/4" NPT Conduit connection: 1/2" NPT
