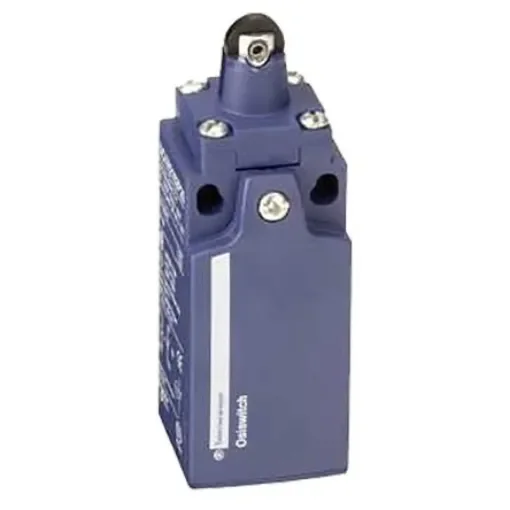

Telemecanique Sensors OsiSense XC Series Roller Plunger Limit Switch, NO/NC, IP65, DP, Plastic Housing, 240V ac Max, - XCKN2102G11
Reliable roller plunger limit switch with IP65 rating, ideal for industrial applications.
Manufacturer part number: XCKN2102G11
GTIN: 3389110318913
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Actuator Type = Roller Plunger
Pole and Throw Configuration = DP
Normal State Configuration = NO/NC
IP Rating = IP65
Maximum Current = 10A
Housing Material = Plastic
Maximum AC Voltage = 240V
Maximum DC Voltage = 250V
Connection Type = PG11
Series = OsiSense XC
Action Type = Snap Action
Length = 30mm
Depth = 85mm
Mounting Orientation = EN50047Cycles
Telemecanique Limit Switches. Introducing Telemecanique XCKN range of limit switches and accessories. These Telemecanique limit switches are the perfect solution for a multitude of applications including escalators, electrical assembly equipment and material handling. A limit switch is commonly made up of an actuator head, switch body and receptacle, predominantly used as part of a control system within industrial applications such as those listed before. Telemecanique OsiSense XCKN series limit switches are a compact design with a wide variety of actuator heads available. The XCKN series is a monolithic plastic limit switch dedicated to repetitive action. How does a limit switch work?. The limit switches function through a contact proximity sensor device that features an actuator that is mechanically linked to a set of output contacts. When an object comes into contact with the actuator, the device then operates the contacts to make or break an electrical connection.
