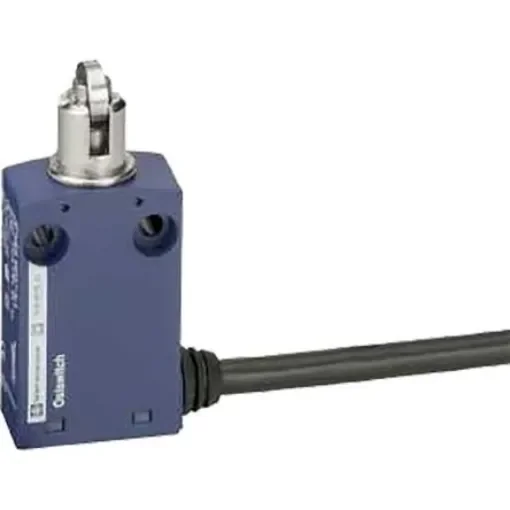

Telemecanique Sensors OsiSense XC Series Roller Plunger Limit Switch, NO/NC, IP65, DP, Plastic Housing, 240V ac Max, 6A - XCMN2103L1

Actuator Type = Roller Plunger
Pole and Throw Configuration = DP
Normal State Configuration = NO/NC
IP Rating = IP65
Maximum Current = 6A
Housing Material = Plastic
Maximum AC Voltage = 240V
Maximum DC Voltage = 250V
Connection Type = Cable
Series = OsiSense XC
Action Type = Snap Action
Length = 30mm
Width = 16mm
Mounting Orientation = Traverse

Telemecanique Limit Switches. Introducing Telemecanique XCMN range of limit switches and accessories. These Telemecanique limit switches are the perfect solution for a multitude of applications including escalators, electrical assembly equipment and material handling. A limit switch is commonly made up of an actuator head, switch body and receptacle and predominantly used as part of a control system within industrial applications such as those listed before. This series is made up of monolithic limit switches that are dedicated to repetitive action. How does a limit switch work?. The limit switches function through a contact proximity sensor device that features an actuator that is mechanically linked to a set of output contacts. When an object comes into contact with the actuator, the device then operates the contacts to make or break the electrical connection.
