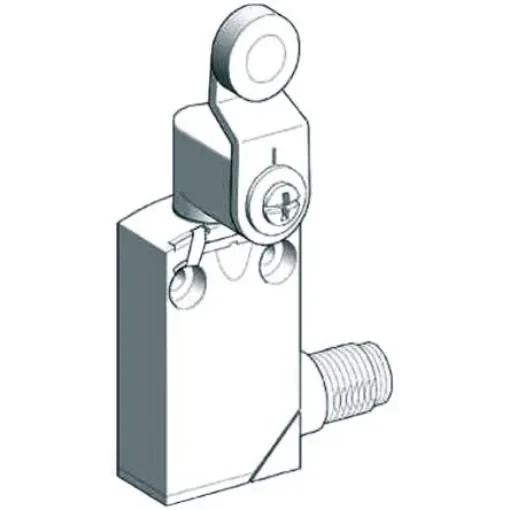

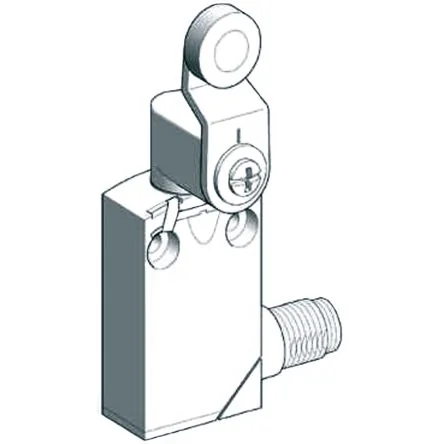

Telemecanique Sensors OsiSense XC Series Roller Lever Limit Switch, NO/NC, IP66, IP67, IP68, DPST, Zamak Zinc Alloy - XCMD2116C12
Reliable roller lever limit switch designed for industrial applications with IP66 protection.
Manufacturer part number: XCMD2116C12
GTIN: 3389110221343
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Actuator Type = Roller Lever
Pole and Throw Configuration = DPST
Normal State Configuration = NO/NC
IP Rating = IP66, IP67, IP68
Maximum Current = 4A
Housing Material = Zamak Zinc Alloy
Maximum AC Voltage = 60V
Connection Type = M12
Series = OsiSense XC
Action Type = Snap Action
Length = 50mm
Minimum Operating Temperature = -25°C
Mounting Orientation = Multi DirectionalOperations
Telemecanique Limit Switches. Introducing Telemecanique miniature range of limit switches and accessories. These Telemecanique limit switches are the perfect solution for a multitude of applications including escalators, electrical assembly equipment and material handling. A limit switch is commonly made up of an actuator head, switch body and receptacle and predominantly used as part of a control system within industrial applications such as those listed before. Comprised of reinforced UL-VO thermoplastic which offers double insulation and protection of IP66. How does a limit switch work?. The limit switches function through a contact proximity sensor device that features an actuator that is mechanically linked to a set of output contacts. When an object comes into contact with the actuator, the device then operates the contacts to make or break the electrical connection.
