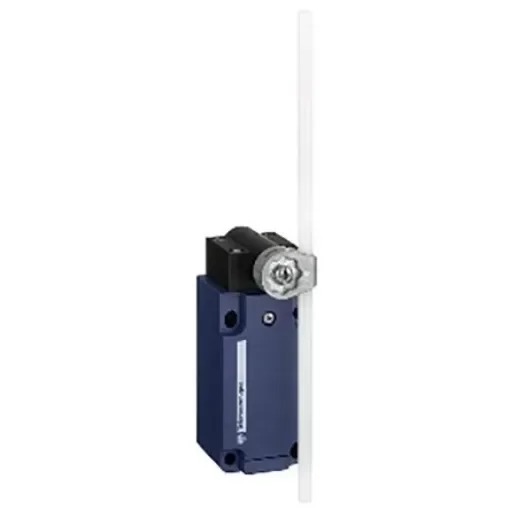

Telemecanique Sensors OsiSense XC Series Rod Limit Switch, NO/NC, IP66, IP67, 2P, Plastic Housing, 240V ac Max, 3A Max - XCKS159H29

Actuator Type = Rod
Pole and Throw Configuration = 2P
Normal State Configuration = NO/NC
IP Rating = IP66, IP67
Maximum Current = 3A
Housing Material = Plastic
Maximum AC Voltage = 240V
Maximum DC Voltage = 250V
Connection Type = M20
Series = OsiSense XC
Action Type = Snap Action
Length = 40mm
Width = 55mm
Mounting Orientation = VerticalCycles

Telemecanique Limit Switches Introducing Telemecanique XCKS range of limit switches and accessories. These Telemecanique limit switches are the perfect solution for a multitude of applications including escalators, electrical assembly equipment and material handling. A limit switch is commonly made up of an actuator head, switch body and receptacle, predominantly used as part of a control system within industrial applications such as those listed before. How does a limit switch work? The limit switches function through a contact proximity sensor device that features an actuator that is mechanically linked to a set of output contacts. When an object comes into contact with the actuator, the device then operates the contacts to make or break an electrical connection. Telemecanique XCKS159H29 Limit Switch • Forms part of the OsiSense XC range of products • Fixed body type • Features a rotary head • Comprised of a hardwearing plastic material • The operator type is a spring return round rod lever thermoplastic round rod 6 mm, L = 200mm • 1NC - 1 NO contact types • 2 poles • Snap-action contact operation • Minimum torque for tripping is 0.1 N.m • Dimensions – W40mm x H98…280mm x D55mm • Modular design for easier maintenance • Positive opening on all snap and slow-break contacts. Resulting in safer machinery
