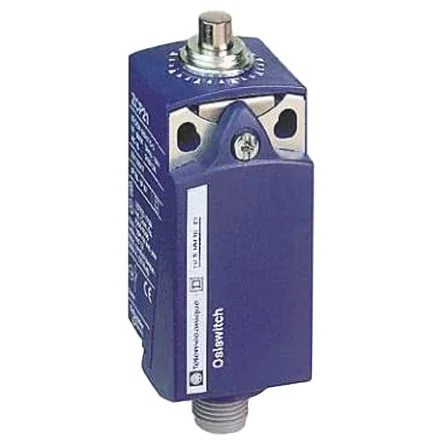

Telemecanique Sensors OsiSense XC Series Plunger Limit Switch, NO/NC, IP66, IP67, DPST, Plastic Housing, 250V ac Max, - XCKP2110M12
Reliable plunger limit switch for industrial applications with IP66/IP67 rating.
Manufacturer part number: XCKP2110M12
GTIN: 3389110202021
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Actuator Type = Plunger
Pole and Throw Configuration = DPST
Normal State Configuration = NO/NC
IP Rating = IP66, IP67
Maximum Current = 3A
Housing Material = Plastic
Maximum AC Voltage = 250V
Connection Type = M12
Series = OsiSense XC
Action Type = Snap Action
Length = 65mm
Minimum Operating Temperature = -25°C
Mounting Orientation = FrontOperations
Telemecanique Limit Switches. Introducing Telemecanique XCKP range of limit switches and accessories. These Telemecanique limit switches are the perfect solution for a multitude of applications including escalators, electrical assembly equipment and material handling. A limit switch is commonly made up of an actuator head, switch body and receptacle, predominantly used as part of a control system within industrial applications such as those listed before. Telemecanique OsiSense XCKP series limit switches are compact in design and offer users a 40% time-saving reduction on an electrical connection. How does a limit switch work?. The limit switches function through a contact proximity sensor device that features an actuator that is mechanically linked to a set of output contacts. When an object comes into contact with the actuator, the device then operates the contacts to make or break an electrical connection.
