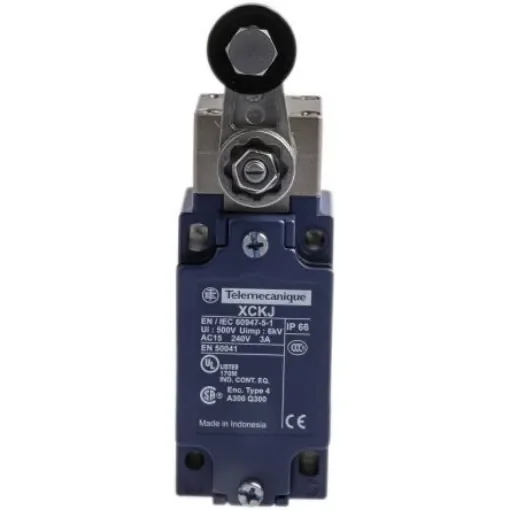

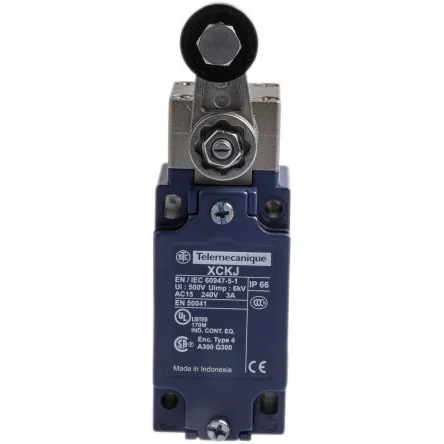

Telemecanique Sensors OsiSense XC Series Lever Limit Switch, NO/NC, IP66, SPDT, Metal Housing, 600V ac Max, 10A Max - XCKJ10511

Actuator Type = Lever
Pole and Throw Configuration = SPDT
Normal State Configuration = NO/NC
IP Rating = IP66
Maximum Current = 10A
Housing Material = Metal
Maximum AC Voltage = 600V
Maximum DC Voltage = 600V
Series = OsiSense XC
Action Type = Snap Action
Length = 77mm
Depth = 44mm
Mechanical Life = 30000000Cycles

Telemecanique Limit Switches. Introducing Telemecanique XCKJ range of limit switches and accessories. These Telemecanique limit switches are the perfect solution for a multitude of applications including escalators, electrical assembly equipment and material handling. A limit switch is commonly made up of an actuator head, switch body and receptacle, predominantly used as part of a control system within industrial applications such as those listed before. The complete limit switch assemblies that sit within this range can be constructed using ZCKJ limit bodies and ZCKE/Y limit switch heads and actuators. How does a limit switch work?. The limit switches function through a contact proximity sensor device that features an actuator that is mechanically linked to a set of output contacts. When an object comes into contact with the actuator, the device then operates the contacts to make or break an electrical connection
