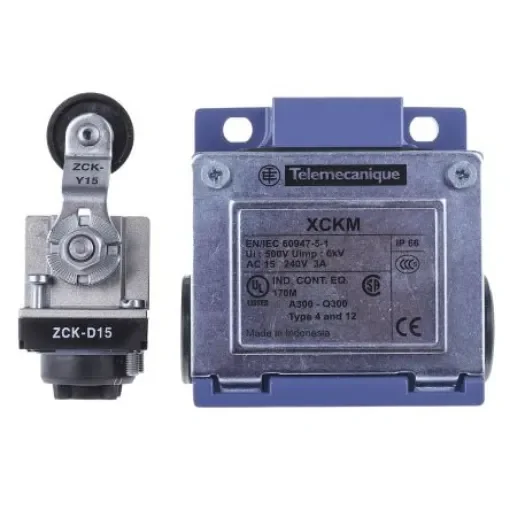

Telemecanique Sensors OsiSense XC Series Lever Limit Switch, NO/NC, IP66, DP, Zinc Alloy Housing, 240V ac Max, 10A Max - XCKM115H29
Reliable lever limit switch for industrial applications with IP66 rating and durable zinc alloy housing.
Manufacturer part number: XCKM115H29
GTIN: 3389110973075
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Actuator Type = Lever
Pole and Throw Configuration = DP
Normal State Configuration = NO/NC
IP Rating = IP66
Maximum Current = 10A
Housing Material = Zinc Alloy
Maximum AC Voltage = 240V
Maximum DC Voltage = 250V
Series = OsiSense XC
Action Type = Snap Action
Length = 64mm
Depth = 30mm
Mechanical Life = 15000000Cycles
VDE0660, IEC947-5-1. UL, CSA. Telemecanique Limit Switches. Introducing Telemecanique XCKM range of limit switches and accessories. These Telemecanique limit switches are the perfect solution for a multitude of applications including escalators, electrical assembly equipment and material handling. A limit switch is commonly made up of an actuator head, switch body and receptacle, predominantly used as part of a control system within industrial applications such as those listed before. How does a limit switch work?. The limit switches function through a contact proximity sensor device that features an actuator that is mechanically linked to a set of output contacts. When an object comes into contact with the actuator, the device then operates the contacts to make or break an electrical connection.
