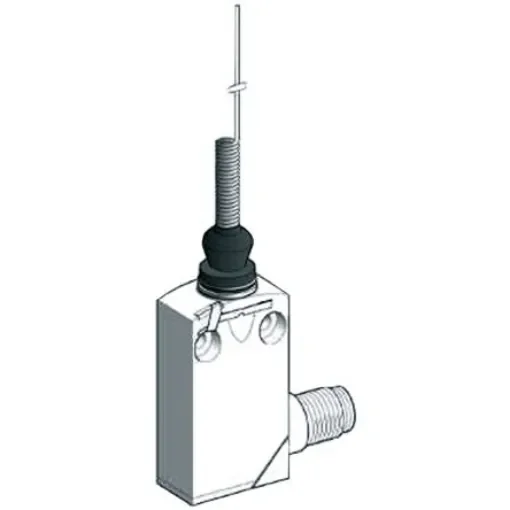

Telemecanique Sensors OsiSense XC Series Coil Spring Limit Switch, NO/NC, IP66, IP67, IP68, SPDT, Zamak Zinc Alloy - XCMD2106M12

Actuator Type = Coil Spring
Pole and Throw Configuration = SPDT
Normal State Configuration = NO/NC
IP Rating = IP66, IP67, IP68
Maximum Current = 3A
Housing Material = Zamak Zinc Alloy
Maximum AC Voltage = 250V
Connection Type = M12
Series = OsiSense XC
Action Type = Snap Action
Length = 50mm
Minimum Operating Temperature = -25°C
Mounting Orientation = Multi DirectionalOperations

Telemecanique Limit Switches. Introducing Telemecanique miniature range of limit switches and accessories. These Telemecanique limit switches are the perfect solution for a multitude of applications including escalators, electrical assembly equipment and material handling. A limit switch is commonly made up of an actuator head, switch body and receptacle and predominantly used as part of a control system within industrial applications such as those listed before. Comprised of reinforced UL-VO thermoplastic which offers double insulation and protection of IP66. How does a limit switch work?. The limit switches function through a contact proximity sensor device that features an actuator that is mechanically linked to a set of output contacts. When an object comes into contact with the actuator, the device then operates the contacts to make or break the electrical connection.
