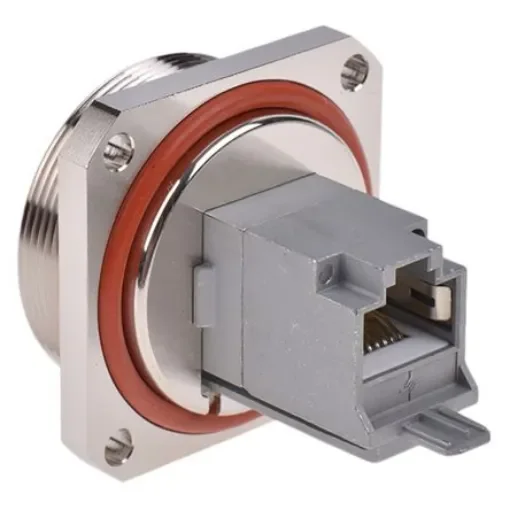

Telegartner TOC Series Single-Port RJ45 Coupler, Cat6, Shielded - J60020A0002

Connector standard to IEC 60603-7-51 (500 MHz) Category 6A: ANSI/TIA/EIA-568-C.2 Category 6: ISO/IEC 11801, DIN EN 50173-1 IP68 protection to IEC 60529. Telegärtner DataVoice TOC IP68 Outdoor Cat 6 RJ45 AMJ Coupler K Bulkhead Set. TOC IP68 outdoor cat 6 RJ45 AMJ coupler K bulkhead set suitable for use in harsh environment machine and plant engineering applications with a temperature range of -40 to +85°C. Installation requires just one turning movement to lock and seal the connection. This cat 6 RJ45 AMJ coupler K bulkhead set is suitable for 10 gb ethernet transmission acc. to IEEE 802.3an and PoE+ acc. to IEEE 802.3at and has a nickel plated brass bulkhead housing, a white PA UL94 V2 insulation body and silver shielding. The flange of this cat 6 RJ45 AMJ coupler K bulkhead set has four mounting holes and a panel mount cut out of 30.5 mm diameter is required. The maximum cable insulation diameter for this TOC IP68 RJ45 bulkhead set is 0.9 mm to 1.6 mm. An IP68 bulkhead protective cap is available separately, see stock number ; 878-2494 878-2494 .
