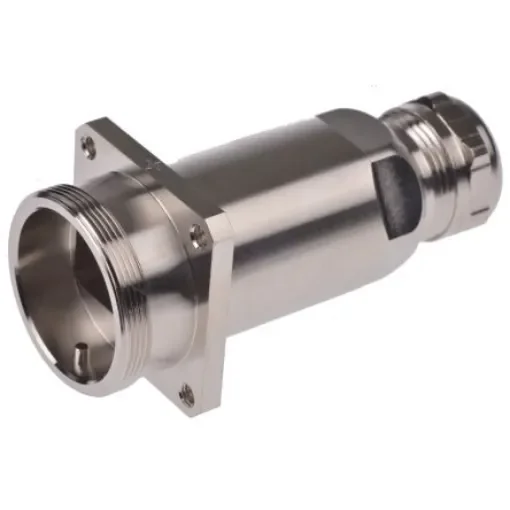

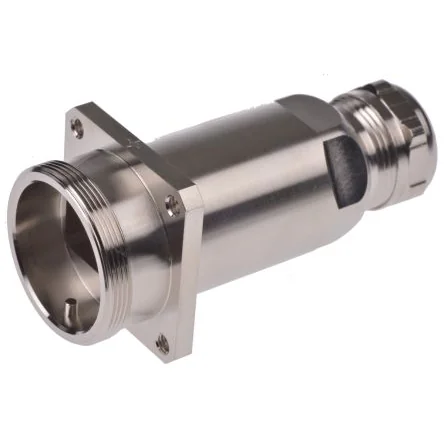

Telegartner TOC Series Female RJ45 Connector, Panel Mount, Cat6a Straight 8P8C -Way - J60023A0000

Ethernet Connector Type = RJ45 Connector
LAN Category = Cat6a
Mounting Type = Panel Mount
Number of Ways = 8P8C
Shield Type = Shielded
IP Rating = IP68
Series Number = J60023A0000
Contact Material = Brass (Shield Contact), Spring Steel
Contact Plating = Nickel

Connector standard to IEC 60603-7-51 Category 6A: ANSI/TIA/EIA-568-C.2 Category 6: ISO/IEC 11801, EN 50173-1 IP68 protection to IEC 60529. Telegärtner DataVoice TOC IP68 Outdoor Cat 6 RJ45 AMJ-S Module T568B Bulkhead Outlet Set. TOC IP68 outdoor cat 6 RJ45 AMJ-S module T568B bulkhead outlet set suitable for use in harsh environment machine and plant engineering applications with a temperature range of -40 to +85°C. Installation requires just one turning movement to lock and seal the connection. This AMJ-S module T568B Cat 6 bulkhead outlet set is suitable for10 Gigabit ethernet transmission acc. to IEEE 802.3an and PoE+ acc. to IEEE 802.3at and has a nickel plated brass bulkhead outlet housing, a white PC UL94 V0 insulation body and 360° shielding. An IP68 bulkhead protective cap (stock number ; 878-2494) 878-2494) and a 38mm ; TH35 bracket (stock number ; 878-2450 878-2450 ) are available separately
