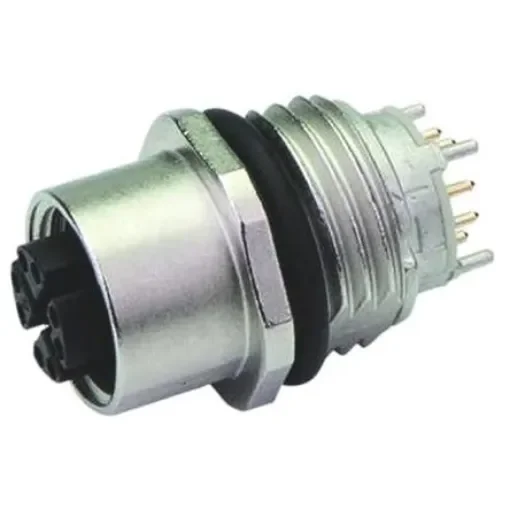

Telegartner Circular Connector, 8 Contacts, Bulkhead Mount, M12 Connector, Socket, Female, IP67 - J80020A0122
Robust M12 circular connector with IP67 rating, ideal for ethernet applications and harsh environments.
Manufacturer part number: J80020A0122
GTIN: 5059045397960
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Mounting Type = Bulkhead Mount
Connector Size = M12
Plug/Socket = Socket
Current Rating = 1.0A
Body Orientation = Straight
Voltage Rating = 500.0 V
Housing Material = Brass, Die Cast Zinc
Contact Plating = Gold
Minimum Operating Temperature = -40°C
IEC 61076-2-109. UL. M12 Circular Connectors STX M12x1 Series, 8 Way, X Coded. Telegartner STX M12x1, 8-pole, X-coded compact connectors in CAT.6A are a robust connector ideal for ethernet applications. These M12 circular screw lock connectors can transmit data rates of up to 10 Gbit/s. The STX M12x1 series of 8 way connectors can be used for many applications, such as security and video surveillance systems, production and manufacturing, renewable energy and for use with railway vehicles data systems. Suitable for connecting to solid and stranded wire cables and features 360 degree shielding. These M12 circular connectors can be used with Power-over-Ethernet+ according to IEEE 802.3at to power devices with up to 30 W. Dustrpoof and watertight, IP67 rated Robust die cast housing 360 degree shielding Vibration protection Full metal shield between pairs of wires
