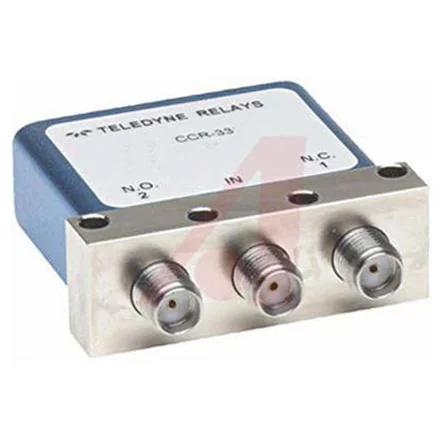

Teledyne RF Switch, SPDT, SMA Female Connector, 18GHz Max, 60dB Isolation, 20ms, 50O Output - CCR-33S3C

Switch Configuration = SPDT
Switching Speed = 20ms
Port to Port Isolation = 60dB
Maximum Insertion Loss = 0.5dB
Connector Type = SMA Female
Output Impedance = 50O
Dimensions = 38.1 x 13.21 x 46.23mm
Weight = 46.8g
Height = 46.23mm
Length = 38.1mm
Maximum Frequency = 18GHz
Maximum Operating Temperature = +65°C
Model Number p = CCR-33GHz

Teledyne - CCR33 Series. Professional range of Teledyne solid state relays from the CCR series. The relays are designed to switch a microwave signal from a common input to either of the two outputs. SPDT Various voltages available Failsafe actuator
