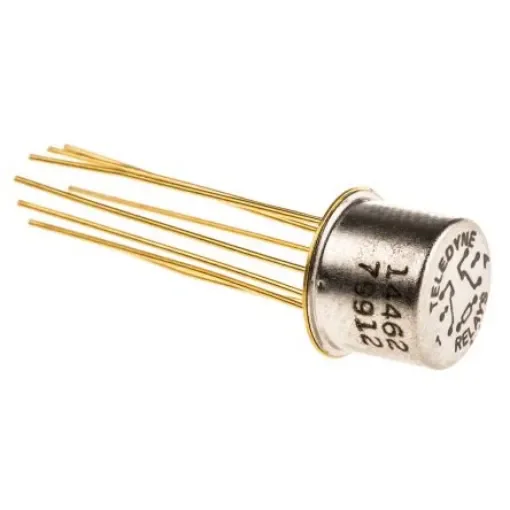

Teledyne PCB Mount RF Relay, 12V dc Coil, DPDT - ER412-12A

Coil Resistance = 390O
Contact Resistance = 100 mO
Insertion Loss = 0.4 dB @ 1 GHz
Isolation = 35 dB @ 2.0 GHz
VSWR Voltage Standing Wave Ratio = 1.07 GHz@ 1.0
Contact Configuration = DPDT
Coil Voltage = 12V dc
Mounting Type = PCB Mount
Contact Voltage = 28V dc
Coil Power = 450mW
Contact Material = Gold Plated
Relay Switching Classification = General Purpose Relaymm

Teledyne DPDT RF RelayThe Teledyne ER412 series PCB mount DPDT hermetically sealed relay is actuated with 12VDC coil voltage. This relay has a gold-plated metal alloy contact which assures excellent high current and dry circuit switching capabilities. Its inherently low intercontact capacitance and contact circuit losses, the relay has proven to be an excellent ultraminiature RF switch for frequency ranges well into the UHF spectrum.Features and BenefitsCoil resistance is 390ohm Dimensions are 9.4mm x 10.29mm x 9.86mm EMI shielding Highly ESD resistant Operating temperature ranging between -65°C and 125°C Switching ranging between 10µA and 10mV to 28VDC High force/mass ratios for resistance to shock and vibration Unique uniframe design, providing high magnetic efficiency and mechanical rigidityCertificationsANSI/ESD S20.20:2014 BS EN 61340-5-1:2007
