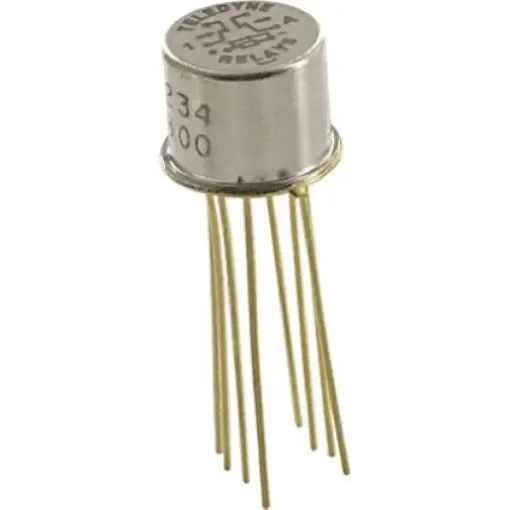

Teledyne PCB Mount RF Relay, 12V dc Coil, DPDT - 712D-12

Coil Resistance = 390O
Contact Resistance = 150 mO
Contact Configuration = DPDT
Coil Voltage = 12V dc
Mounting Type = PCB Mount
Contact Voltage = 28V dc
Coil Power = 450mW
Contact Material = Gold Plated
Maximum Operating Temperature = +85°C

Teledyne RF RelayThe Teledyne 712D series PCB mount DPDT ultra-miniature RF relay is actuated with 12VDC coil voltage at a frequency of 1GHz. It is a relay with an internal diode for coil transient suppression. This relay has a low profile height of 6.99mm and is designed for use when close PCB spacing is required. This relay has unique construction features and manufacturing techniques that provide excellent resistance to environmental extremes and overall high reliability. It is hermetically sealed and gives excellent switching performance from Dry circuit to 1A. A typical RF application for this relay is in handheld radio transceivers which combines the features of good RF performance, small size, low coil power dissipation and high reliability, making it a preferred method of transmitting/receive switching.Features and BenefitsCoil power is 450mW Coil resistance is 390ohm Contact termination is solder pin Dimensions are 9.4mm x 6.99mm Gold-plated contacts High reliability High resistance to shock and vibration Low insertion loss i.e. isolation and intercontact capacitance of 0.4pF Operating temperature ranging between -55°C and 85°C Uniframe design provides high magnetic efficiency and mechanical rigidityCertificationsANSI/ESD S20.20:2014 BS EN 61340-5-1:2007
