Teledyne LeCroy USB 2.0 Bus Trigger & Decode Oscilloscope Software for Use with HDO4000 Series, Version 2.0 - HDO4K-USB2BUS TD

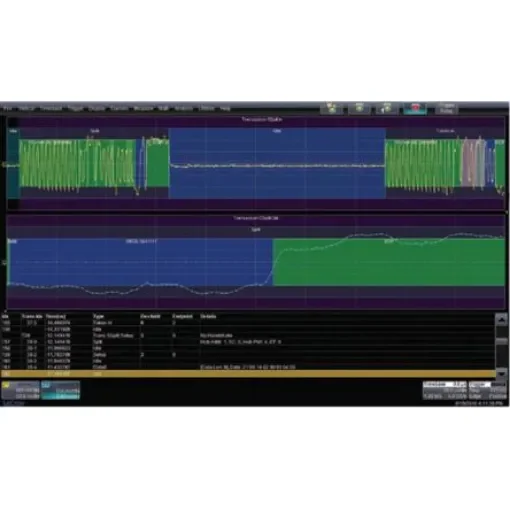

Teledyne LeCroy HDO4000 USB 2.0 Bus Trigger and Decode HDO4K-USB2BUS TD. Teledyne LeCroy HDO4000 USB 2.0 bus trigger and decode option provides comprehensive USB1.1x and 2.0 (low, full and high speed) protocol triggering using a true hardware protocol trigger for the most efficient debug. True hardware protocol triggering for efficient debug Trigger on USB packet (Token, Data, Handshake, User-Defined) with complete setup flexibility Trigger on any of three "OR'ed" packets Transaction triggering Comprehensive protocol error and bus event triggering Decodes low-speed (1.5 Mb/s), full-speed (12 Mb/s) and high-speed (480 Mb/s) USB bus speeds Correlate analog waveforms with protocol decode on one screen Decode information expands as the timebase is adjusted or zoomed Convenient table display with quick "Zoom to byte" capability Quick search capability for specific message packets
