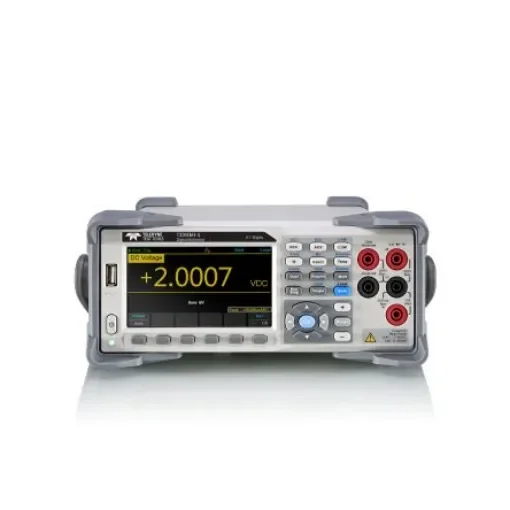

Teledyne LeCroy T3DMM Bench Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 750V ac Max - T3DMM4-5

Teledyne Test Tools new T3DMM series are dual display digital desktop multimeters that provide a rich and powerful feature set. The design is easy-to-use from the front-panel and computer-based control via USB or LAN. Each model is equipped with a 4.3 inch TFT-LCD true colour screen with 480 * 272 resolution for easy viewing. The T3DMM series also features numerical data display, histograms, trend charts, bar charts and statistics, in addition to the built-in arithmetic functions including Measurement statistics.Real 4-1/2 digit (60,000 counts) readings resolution Up to 150 rdgs/s measurement speed True-RMS AC Voltage and AC Current measuring 1 Gb NAND flash size, Mass storage configuration files and data files Built-in cold terminal compensation for thermocouple Standard interface: USB Device, USB Host, LAN DC Voltage: 600 mV ~ 1000 V DC Current: 600 µA ~ 10 A AC Voltage: True-RMS, 600 mV ~ 750 V AC Current: True-RMS,60 mA ~ 10 A 2/4-Wire Resistance: 600 O ~ 100 MO Capacitance: 2 nF ~ 10000 µF Continuity Test: Rang e is fixed at 2 kO Diode Test: Adjustable range is 0~4 V. Period Measurement: 2 µs ~ 0.05 s Temperature: Support for TC and RTD sensor Max, Min, Average, Standard Deviation, dBm/dB, Relative Measurement, Pass/Fail
