Teledyne LeCroy Manchester Bus Decode Oscilloscope Software for Use with HDO4000 Series - HDO4K-MANCHESTERBUS D

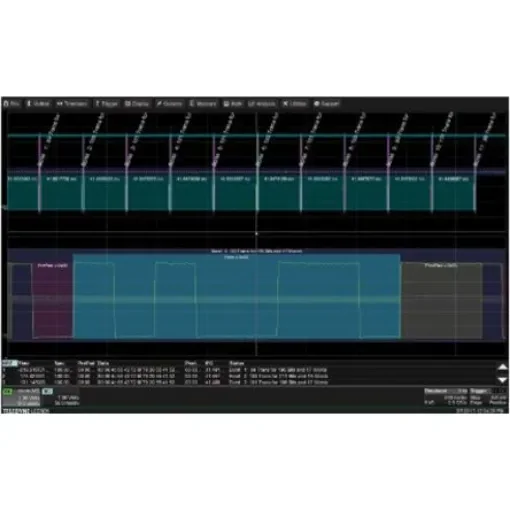

Teledyne LeCroy HDO4000 Manchester Bus Decode Option HDO4K-MANCHESTERBUS D. Teledyne LeCroy option HDO4K-MANCHESTERBUS D offers user-definable protocol decoding of Manchester encoded buses. Depending on the time base or the amount of zoom, the decode information is condensed or expanded to better assist in understanding events during short or long acquisitions. Powerful conditional data triggering isolates specific protocol message events for better understanding and debug. Convenient table displays summarise results (the table never obscures the waveform). The powerful search engine can quickly find an Event, Packet, Transaction or Protocol Error. Long records of decoded data can be searched by entering any of the available search criteria, entering a value or simply finding the next occurrence. User-definable protocol decoding of Manchester encoded buses Flexible decoding of buses with bit rates up to 10 Gb/s Configurable word and packet grouping for custom protocol definition Intuitive colour-coded decode is overlaid directly on physical layer waveform Convenient table display with quick "zoom to message" capability Search feature quickly identifies specific packets and data
