Teledyne LeCroy LIN Bus Trigger & Decode Oscilloscope Software for Use with HDO4000 Series, Version 2.x, LIN 1.3 - HDO4K-LINBUS TD

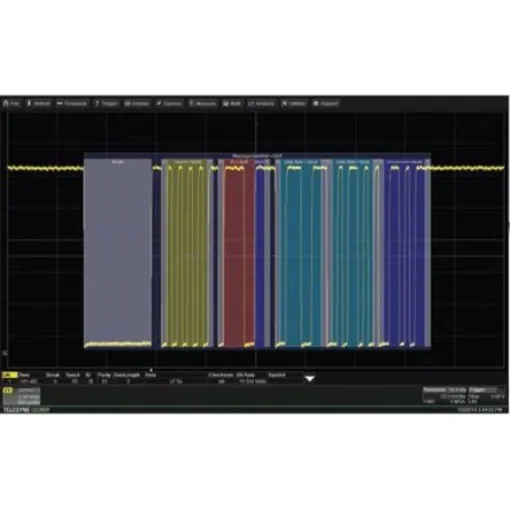

Teledyne LeCroy HDO4000 LIN Bus Trigger and Decode Option HDO4K-LINBUS TD. Teledyne LeCroy LINbus trigger and decode option HDO4K-LINBUS TD provides full support for LIN 1.3, 2.x and J2602. It ensures trigger and decode functionality, whatever version of LIN is in use. Triggering provides full capability on any event with completely definable Message ID and DATA triggers, or flexible Error Frame triggering. Patented software algorithms deconstruct the waveform into protocol decode information, then overlay the decoded data on the waveform. LIN 1.3, 2.x, J2602 supported Powerful and flexible triggering, including triggers for: Break (Start of Message),Message ID, Message ID + DATA, Error Frame Powerful conditional DATA triggering Error Frame triggering supports multiple error frame types: Checksum, Header Parity, Sync Byte Decode is performed quickly, even on long records, using advanced software algorithms Hexadecimal decodes Easily learn the LIN protocol with intuitive colour-coded decode overlay Convenient table display with quick "zoom to message" capability Quick Search capability for specific message packet
