Teledyne LeCroy ENET Bus Decode Oscilloscope Software for Use with HDO4000 Series - HDO4K-ENETBUS D

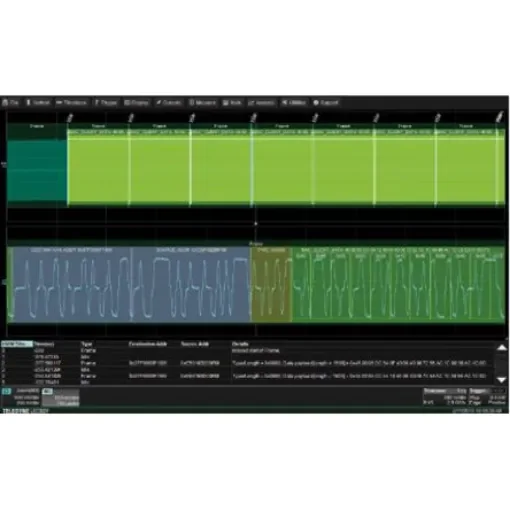

Teledyne LeCroy HDO4000 ENET Bus Decode Option HDO4K-ENETBUS D. Teledyne LeCroy option HDO4K-ENETBUS D offers Ethernet data layer decode for 10BASE-T and 100BASE-TX. Depending on the time base or the amount of zoom, the decode information is condensed or expanded to better assist in understanding events during short or long acquisitions. Powerful conditional data triggering isolates specific protocol message events for better understanding and debug. Convenient table displays summarise results (the table never obscures the waveform). The powerful search engine can quickly find an Event, Packet, Transaction or Protocol Error. Long records of decoded data can be searched by entering any of the available search criteria, entering a value or simply finding the next occurrence. Ethernet data layer decode for 10BASE-T and 100BASE-TX Colour-coded decode highlights key elements of Ethernet packet such as address or error information Decoded information is intuitively overlaid directly on top of the waveform Decode information expands as the timebase is adjusted or zoomed Convenient table display with quick "zoom to message" capability Quick search capability for specific Ethernet frames
