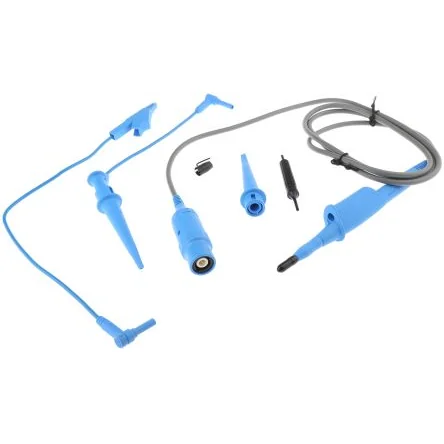

Tektronix TPS2000 Series P5122 Oscilloscope Probe, Voltage Type, 200MHz, 1:100

Tektronix Oscilloscope ProbesThe Tektronix oscilloscope probe when coupled with the TPS2000 and THS3000 series digital storage oscilloscopes, delivers both the isolation for the measurement from earth ground and full isolation between the channels. It is the recommended probe for measuring ripple on high voltage DC supplies. This probe should not be used on the TPS2000 series oscilloscopes for AC coupled measurements on signals with greater than 300VDC offset.Features and BenefitsBandwidth is DC to 200MHz Attenuation ratio is 1:100 Input impedance is 100Mohmll4pF Rise time is 2.2ns Floatable up to 600VRMS CAT II Maximum Input voltage DC or RMS is 1000VRMS CAT II Wide compensation ranges between 7pF and 30pFApplicationsPower supply design Design motor drive Electronic ballast Power semiconductors Switch mode control UPS systems Power convertersCertificationsIEC61010-031 CAT II 1000 VAC CAT II 600VAC
