Tektronix THD Series THDP0100 Oscilloscope Probe, Differential Type, 100MHz, 1:100, 1:1000, BNC Connector

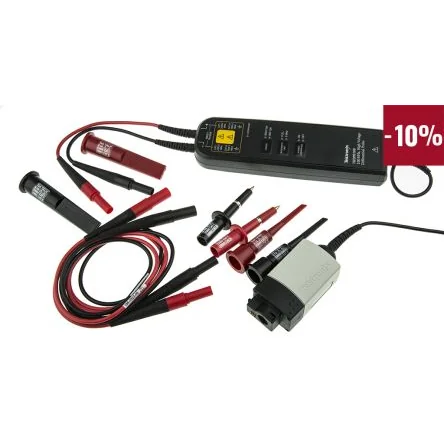

Tektronix Oscilloscope ProbesThe Tektronix differential high voltage oscilloscope has the largest differential dynamic range capability. It allows the user to safely measure up to ±6000V. The probe supports bandwidths up to 100MHz and slew rates up to 2500V/ns at 1/1000 gain. This probe is supplied with two sizes of hook tips and has an over-range visual and audible indicator that warns the user when they are exceeding the linear range of the probe. Note: TMDP and THDP Series probes have the TekVPI® interface which enables smart communication between oscilloscope and probe - each TekVPI probe features controls and indicators located on the probe compensation box, designed to provide quick and easy access to the probes most commonly required set-up controls and operating status. P52xxA Series probes have the Tektronix TekProbe® interface which communicates scale information to the oscilloscope. The THDP0100 is capable of measuring floating voltages up to 6000V safely. An over-range visual and audible indicator warns the user when the linear range of the probe is exceeded. Supplied with: 2 probe tips 2 large hook clips 2 small hook clips 2 probe headsFeatures and BenefitsBandwidth is DC to 200MHz Attenuation ratio is 1:100 and 1:1000 Rise time is 3.5ns Input impedance is 40Mohmll2.5pF Maximum common mode voltage is ±6000KV Maximum Input voltage is 2300V CAT I 1000V CAT III Typical CMRR DC: >-80dB/100 kHz: >-60dB/3.2 MHz: >-30dB/100 MHz: >-26dB Overrange Indicator Safety Certified Switchable attenuation Switchable bandwidth limit •ApplicationsFloating measurements Switching power supply design Motor drive design Electronic ballast design CRT display design Power converter design and service Power device evaluation BNC interface (P5200A probes) TekVPI interface (TMDP and THDP Series probes) TekProbe interfaceCertificationsCE certified ISO certified CAT I 2300 V CAT III 1000 V
