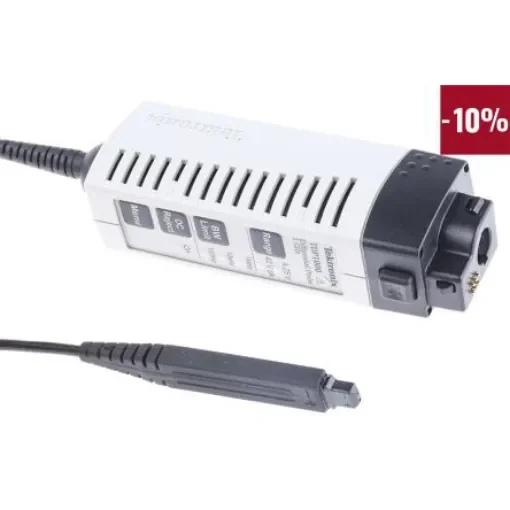

Tektronix TDP Series TDP1000 Oscilloscope Probe, Differential Type, 1GHz, 1:5, 1:50
The Tektronix TDP1000 probe delivers high-speed performance for advanced electrical measurements.
Manufacturer part number: TDP1000
Probe Type = Differential
Attenuation = 1:5, 1:50
Bandwidth = 1GHz
Maximum Common Mode Input Voltage = 30V
Model Number p = TDP1000
Series = TDP
Rise Time = 350ps
Tektronix Oscilloscope ProbesThe Tektronix high voltage differential oscilloscope probe provides an excellent high-speed electrical and mechanical performance required for Switch Mode Power Supply (SMPS), CAN/LIN Bus and high-speed digital system designs.Features and BenefitsBandwidth is DC to 1GHz Attenuation is 50:1/5:1 Rise time is 350ps Differential mode input voltage is ±42V (DC + pk AC) 30VRMS Input impedance is 1Mohm ll<1pf each side to ground common mode voltage range is ±30v (dc + pk ac) 25vrms non-destructive max input voltage is ±100v (dc + pk ac) cmrr (typical) is 55db at 30khz>50dB at 1MHz >18dB at 250MHz Selectable bandwidth limiting filters DC reject Connects to some Tektronix oscilloscopes using the TekVPI™ probe interface Easy access to scope-displayed probe menu for probe set-up control and operating status information Auto-Zero – Nulls output offsetApplicationsHigh-speed switch mode power supply design CAN/LIN bus design Digital design and characterization Manufacturing engineering test Research and development
