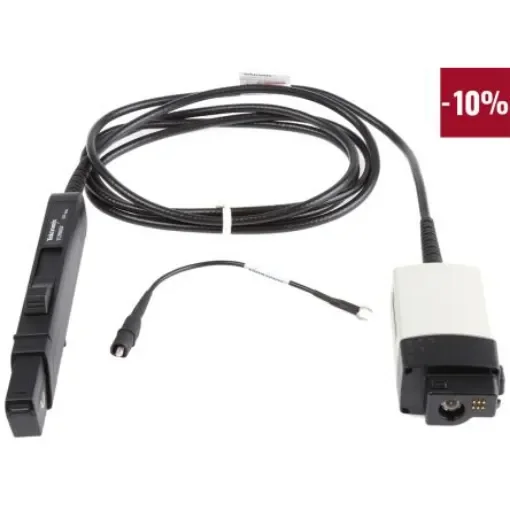

Tektronix TCP0020 Oscilloscope Probe, Current Type, 50MHz

Probe Type = Current
Bandwidth = 50MHz
Model Number p = TCP0020
Current = 20A
Safety Category = CAT II 150 V, CAT II 300V

Tektronix Current ProbeThe Tektronix is a high-performance and easy-to-use AC/DC current probe designed for use with a variety of oscilloscopes. It can be used with any instrument with BNC inputs and greater than >100 kO input termination. Inclusions: Probe ground lead 6in (152.4mm) long, a nylon carrying case, and an instruction manual (English).Features and BenefitsEasy-to-use and accurate AC/DC current measurements DC to greater than 50MHz bandwidth Core jaw diameter of 5mm (0.2in) Accurately measures current levels as low as 10mA per division High accuracy with typically less than 1% DC gain error Split-core construction allows easy circuit connection Low noise and DC drift 20ARMS maximum current capability 100A peak pulse current capability Connects directly to oscilloscopes with the TekVPI™ probe interface Provides automatic units scaling and readout on the oscilloscope display One-button degauss and autozero control for ease of use Easy access to scope-displayed probe menu for probe set-up control and operating status information Remote control capability through TekVPI oscilloscopeApplicationsPower supplies Semiconductor devices Power inverter/converters Electronic ballasts Industrial/consumer electronics Mobile communications Motor drives Transportation systemsCertificationsCAT II 150V CAT II 300V CAT II
