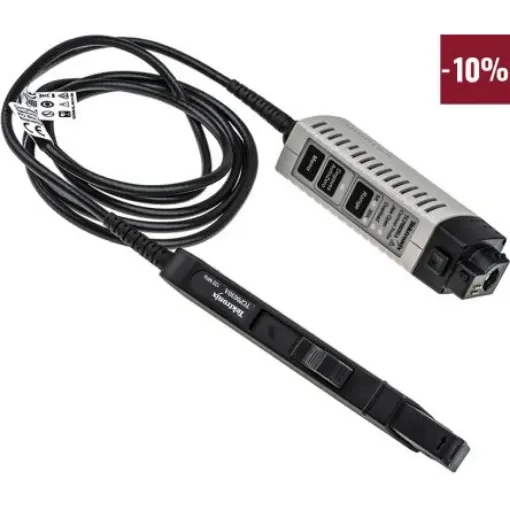

Tektronix TCP Series TCP0030A Oscilloscope Probe, Current Type, = 120MHz, BNC Connector - ASIC

Tektronix Oscilloscope ProbesThe Tektronix current oscilloscope probe is designed for direct connection to oscilloscopes with the probe interface. This AC/DC current measurement probe provides greater than 120MHz bandwidth with selectable 5A and 30A measurement ranges. It also provides exceptional low current measurement capability and accuracy to current levels as low as 1mA.Features and BenefitsBandwidth is DC to 120MHz Rise time is 2.92ns Maximum DC and RMS current is 30A Maximum peal pulse voltage 50A Maximum Input voltage is 150V CAT II Split-core construction allows easy circuit connection Typically less than 1% DC gain error Low noise and DC drift Easy to Degauss and Autozero set-up controls and probe status/diagnostic indicators on probe hardware and via oscilloscope UI display menu Intelligent communication with TekVPI™ oscilloscopes provides: -Units scaling and readout. Automatic, on-screen readout of amps and magnitude. Manual set-up is not required Hand calculation from volts to amps is unnecessary -Push button degauss and Autozero functionality -Probe status and diagnostic indicator LEDs -Remote GPIB/USB probe control •ApplicationsPower supply design Design motor drive Electronic ballast Power semiconductors Switch mode control UPS systems Power converters Mobile communications Motor drives Industrial/consumer electronicsCertificationsCE compliant WEEE compliant
