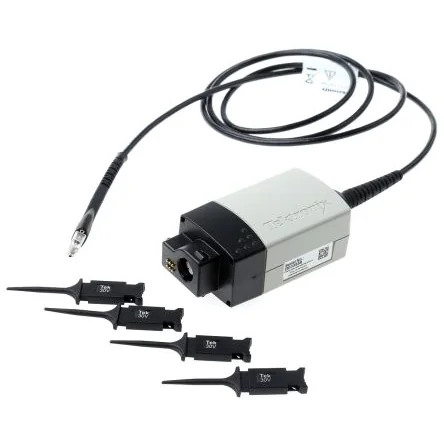

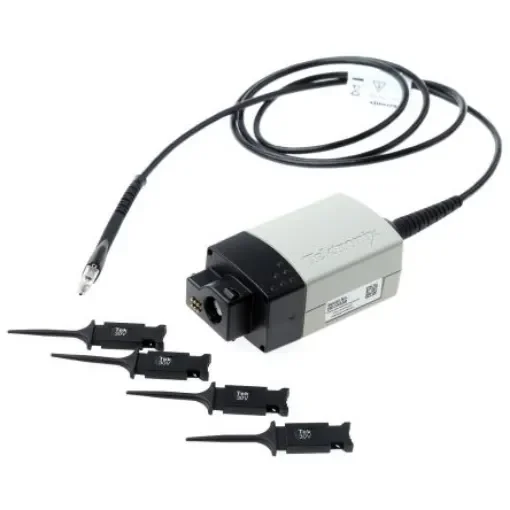

Tektronix TAP Series TAP1500 Oscilloscope Probe, Voltage Type, 1.5GHz, 1:10

Probe Type = Voltage
Attenuation = 1:10
Bandwidth = 1.5GHz
Maximum Common Mode Input Voltage = 10V
Model Number p = TAP1500
Series = TAP
Rise Time = 267ps

Tektronix Oscilloscope ProbesThe Tektronix single-ended Active FET oscilloscope probe provides excellent high-speed electrical and mechanical performance required for digital system designs. It is specifically designed for direct connection to oscilloscopes with the TekVP probe interface. Note: TAP1500 includes individual probe case Supplied with: Ground leads Adaptors Colour-coding clips Solderable probe tips Test tips User manual Nylon carrying caseFeatures and BenefitsBandwidth is DC to 1.5GHz Rise time is 267ps Attenuation ratio is 1:10 Maximum common mode input voltage is 10V Input impedance is 1Mohmll1pF Input capacitance is 1pF Non-destructive max. input voltage is ±15V (DC + peak AC) Input dynamic range -8V to 8V Input offset range -10V to 10VDC Versatile Mechanical Performance: -Small compact probe head for probing small geometry circuit elements -DUT attachment accessories Enable Connection to SMDs as small as 0.5mm pitch -Robust design for reliability Easy to use: -Provides automatic units scaling and readout on the oscilloscope display -Easy access to oscilloscope probe menu display for probe -Status/Diagnostic information, and to control probe DC offset -Remote GPIB/USB Probe control through the oscilloscopeApplicationshigh-speed digital systems design Component design and characterization Manufacturing engineering and test Educational research Signals with voltage swings up to 16Vp-pCertificationsWEEE compliant
