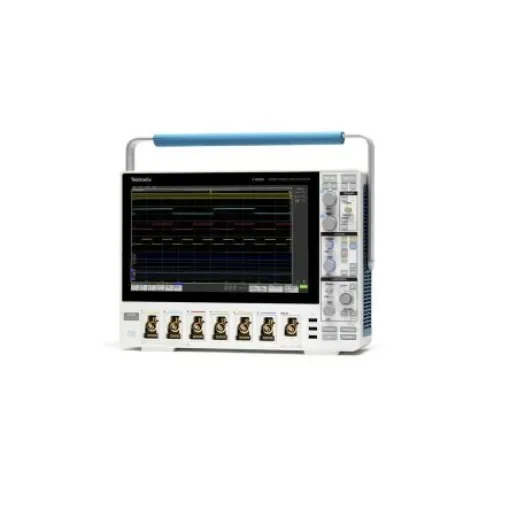

Tektronix MSO44 4 Series MSO Series, 200MHz Bench Oscilloscope, 4 Analogue Channels, 32 Digital Channels - MSO44 4-BW-200

Bandwidth = 200MHz
Number of Analogue Channels = 4
Number of Digital Channels = 32
Oscilloscope Type = Bench
Interface = CAN, IIC, LIN, RS232, RS422, RS485, SPI, UART, USB
Sample Rate Random = 6.25 Gsps
Screen Size = 13.3in
Series = 4 Series MSO
Record Length = 31.25M points/ch
Weight = 7.6kg

With the largest display and highest available channel count in its class, the 4 Series offers unprecedented insight in a bench-friendly package. And its made-for-touch user interface works exactly as youd expect.Input channels 4 or 6 FlexChannel® inputs Each FlexChannel provides: One analog signal that can be displayed as a waveform view, a spectrum view 1, or both simultaneously Eight digital logic inputs with TLP058 logic probe
