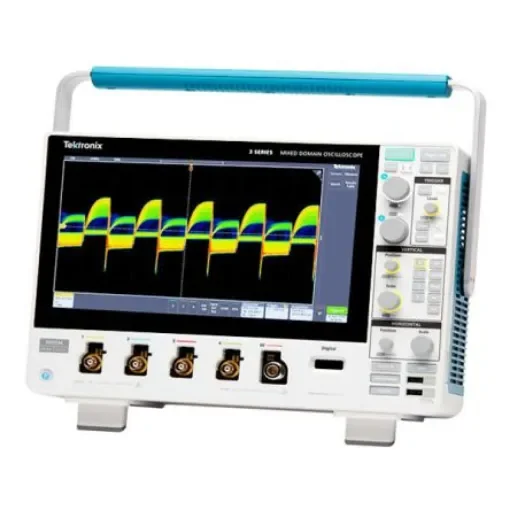

Tektronix MDO34 3 Series MDO Series, 500MHz Bench Oscilloscope, 4 Analogue Channels, 16 Digital Channels - MDO34 3-BW-500

Bandwidth = 500MHz
Number of Analogue Channels = 4
Number of Digital Channels = 16
Oscilloscope Type = Bench
Oscilloscope Form = Mixed Domain
Sample Rate Random = 2.5 Gsps
Screen Size = 11.6in
Series = 3 Series MDO
Record Length = 10M points/ch
Rise Time = 800ps

Bandwidth is upgradable (up to 1 GHz) Up to 5 GS/s sample rate 10 M record length on all channels >280,000 wfm/s maximum waveform capture rate Standard passive voltage probes with 3.9 pF capacitive loading and 250 MHz or 500 MHz analog bandwidth Spectrum Analyzer (optional) Frequency range: 9 kHz - 1 GHz or 3 GHz Arbitrary Function Generator (optional) 13 predefined waveform types 50 MHz waveform generation 128 k arbitrary generator record length 250 MS/s arbitrary generator sample rate Digital Channels (optional) 16 digital channels 10 M record length on all channels 121.2 ps timing resolution Serial Bus Decode, Triggering and Search (optional) Serial bus support for I2C, SPI, RS-232/422/485/UART, USB 2.0, CAN, CAN FD, LIN, FlexRay Digital Voltmeter / Frequency Counter (Free with product registration) 4-digit DC, AC RMS, and DC+AC RMS voltage measurements 5-digit frequency measurements Save 44% FREE BW Upgrade & 3 FREE Options With the same made-for-touch user interface technology as the award-winning 5 Series along with the largest display and highest resolution display in its class, the 3 Series MDO works how a scope should work.
