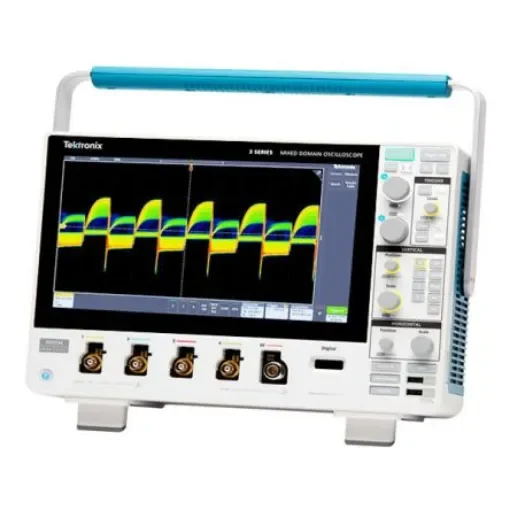

Tektronix MDO34 3 Series MDO Series, 1GHz Bench Oscilloscope, 4 Analogue Channels, 16 Digital Channels - MDO34 3-BW-1000

Bandwidth is upgradable (up to 1 GHz) Up to 5 GS/s sample rate 10 Mpts record length on all channels >280,000 wfm/s maximum waveform capture rate Standard passive voltage probes with 3.9 pF capacitive loading and 250 MHz or 500 MHz analog bandwidth Spectrum Analyzer (optional) Frequency range: 9 kHz - 1 GHz or 3 GHz Arbitrary Function Generator (optional) 13 predefined waveform types 50 MHz waveform generation 128 k arbitrary generator record length 250 MS/s arbitrary generator sample rate Digital Channels (optional) 16 digital channels 10 Mpts record length on all channels 121.2 ps timing resolution Serial Bus Decode, Triggering and Search (optional) Serial bus support for I2C, SPI, RS-232/422/485/UART, USB 2.0, CAN, CAN FD, LIN, FlexRay Digital Voltmeter / Frequency Counter (Free with product registration) 4-digit DC, AC RMS, and DC+AC RMS voltage measurements 5-digit frequency measurementsWith the same made-for-touch user interface technology as the award-winning 5 Series along with the largest display and highest resolution display in its class, the 3 Series MDO works how a scope should work.
