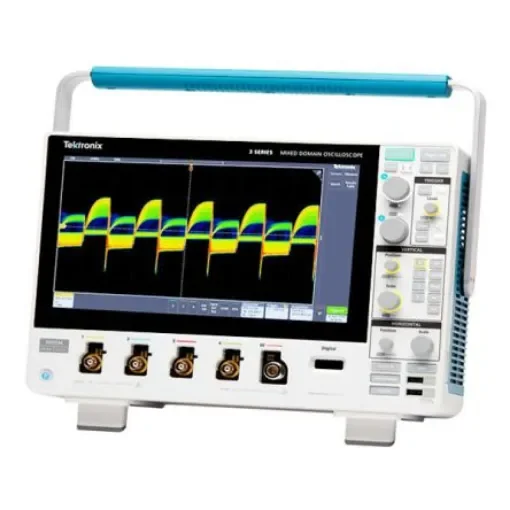

Tektronix MDO32 3 Series MDO Series, 200MHz Bench Oscilloscope, 2 Analogue Channels, 16 Digital Channels - MDO32 3-BW-200

Bandwidth is upgradable (up to 1 GHz) Up to 5 GS/s sample rate 10 M record length on all channels >280,000 wfm/s maximum waveform capture rate Standard passive voltage probes with 3.9 pF capacitive loading and 250 MHz or 500 MHz analog bandwidth Spectrum Analyzer (optional) Frequency range: 9 kHz - 1 GHz or 3 GHz Arbitrary Function Generator (optional) 13 predefined waveform types 50 MHz waveform generation 128 k arbitrary generator record length 250 MS/s arbitrary generator sample rate Digital Channels (optional) 16 digital channels 10 M record length on all channels 121.2 ps timing resolution Serial Bus Decode, Triggering and Search (optional) Serial bus support for I2C, SPI, RS-232/422/485/UART, USB 2.0, CAN, CAN FD, LIN, FlexRay Digital Voltmeter / Frequency Counter (Free with product registration) 4-digit DC, AC RMS, and DC+AC RMS voltage measurements 5-digit frequency measurements Save 69% FREE BW Upgrade & 3 FREE Options
