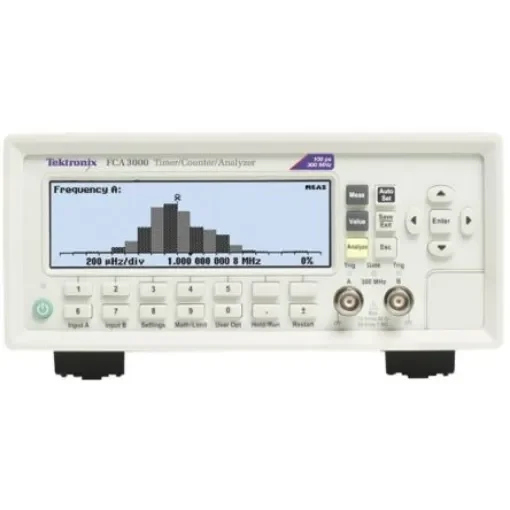

Tektronix FCA3000 Frequency Counter, 0.001 Hz Min, 300MHz Max, 12 Digit Resolution

Maximum Frequency = 300MHz
Minimum Frequency = 0.001 Hz
Resolution = 12 Digit
Pulse Width Resolution = 1.6ns
Attenuation = 1:10
Maximum Input Voltage = 5 V, 50 V
Minimum Input Voltage = -50 V, -5 V
Input Impedance = 1 MO, 50 O
Measurement Time = 250ksps
Connector Type = BNC, SMA, Type-N Female
Dimensions = 395 x 210 x 90mm
Maximum Operating Temperature = +50°C

Quick Start User Manual (English, Chinese, Japanese), multiple language documentation CD, NI LabVIEW SignalExpress™ TE (Basic) Edition software, trial version of TimeView™ Time Domain Analysis software, power cords, calibration certificate, UK ; Euro plugs ( ; 712-1154 712-1154 ; ; 712-1157 712-1157 ). Suitable for use with TVA3000 - TimeView™ Modulation Domain Analyzer ; 712-1151 712-1151 and with HCTEK4321 hard carrying case ; 613-1510 613-1510. 3. Tektronix FCA3000 ; FCA3100 Timer/Counter/Analyzers. Tektronix timer/counter/analyzers offer performance and an abundance of features at an affordable price. With a graphical display and single button analyse key, users can instantly view their measurements with histograms, trend plots or a wide choice of statistics displayed simultaneously on the display, including Allan Deviation. There is the added benefit of multi-parameter measurements from one test connection, e.g., voltage measurements included with frequency. The instruments offer very high measurement speed and connectivity for an automated test system, including a convenient USB port. Measurements can be captured into internal memory at the rate of 250k/sec, or streaming block transfers through USB/GPIB up to 15k/sec. Graphical, multi-parameter timer/counter display High resolution down to 50 ps single shot (time) Measurements to 12 digits/sec (frequency) Fast USB/GPIB bus transfer speeds Super fast measurements (250k/s) to internal memory Zero-dead time frequency/period measurements Built-in statistics ; math functions including on screen histogram, trend plot or Allan Deviation GPIB operates in either SCPI/GPIB or 53131A emulation mode, for plug-n-play replacement in existing ATE systems Seamless PC connectivity through USB with NI SignalExpress™ Software
