Tektronix Data Acquisition Coupler for Use with 3700A Series - 3720
Enhance your 3700A Series with the Tektronix 3720 multiplexer card for efficient and reliable data acquisition.
Manufacturer part number: 3720
Accessory Type = Multiplexer Card
For Use With = 3700A Series

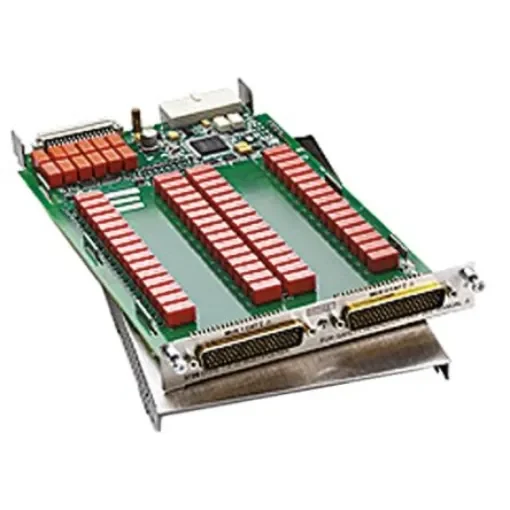

1. Keithley 3720 Dual 1x30 Multiplexer card. The Keithley 3720 offers 2 independent banks of 1x30 two-pole multiplexers for general purpose switching, including temperature measurements. Its analog backplane connection relays provide easy bank and card interconnections. This connection allows the mainframe to reconfigure the card to a single 1x60 two-pole multiplexer or to enable card-to-card expansion for even larger configurations. The 3720 can also be reconfigured to coordinated four-pole operation. 60 two-pole channels or 30 four-pole channels for general purpose switching Analog backplane connection relays provide easy bank and card interconnections 300V, 1A switched or 2A carry signal capacity; 60W, 125VA Relay closures stored in onboard memory Latching electromechanical relays
