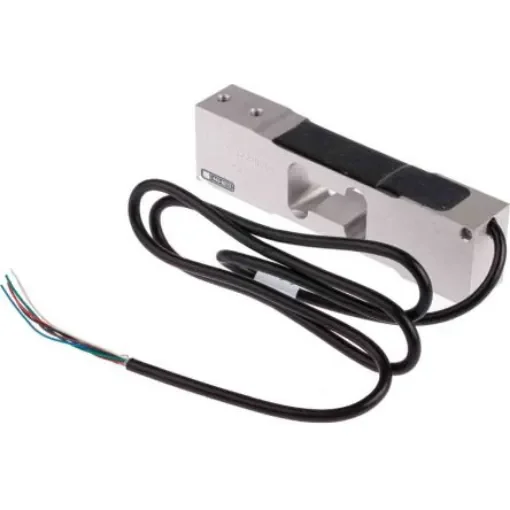

Tedea Huntleigh Single Point Load Cell, 75kg Range, Compression Measure - 1042-0075-F000-RS
Accurate 75kg single point load cell for reliable compression measurements.
Manufacturer part number: 1042-0075-F000-RS
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Force Measured = Compression
Force/ Load Measurement Range = 75kg
Sensor Type = Single Point
Terminal Type = Wire Lead
IP Rating = IP66
Housing Material = Aluminiummm
Depth = 25.4mm
Minimum Operating Temperature = -10°C
Maximum Operating Temperature = +40°C
Dimensions = 150 mm
Low Profile Aluminium. Compensated Temperature Range -10 to +40°C Output Impedance 350 +/- 3O Termination Type: Cable Ultimate Overload: 300% of Rated Load. 1042 series low profile single point load cell designed for direct mounting of low cost weighing platforms. Has a humidity resistant protective coating, which assures long term stability over the entire compensated temperature range. Dimensions: 20 x 40 x 150mm (1 to 30kg); 25.2 x 40 x 150mm (50 to 100kg) Please also browse our range of output signal conditioners
