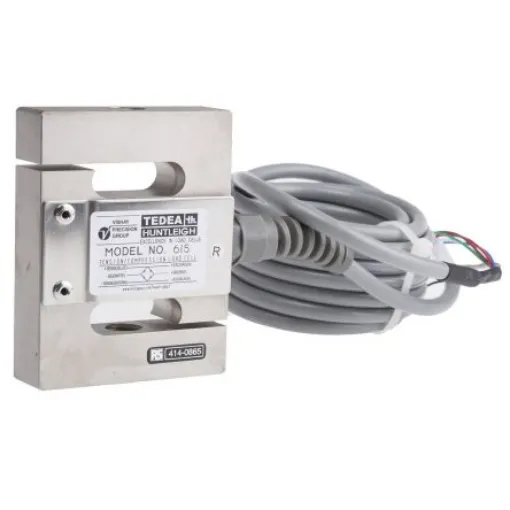

Tedea Huntleigh S Type Load Cell, 300kg Range, Compression, Tension Measure - 0615-0300-G000-RS
Accurate 300kg load cell for tension and compression applications.
Manufacturer part number: 0615-0300-G000-RS
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Tedea Huntleigh Compression ; Tension Load Cell "S" Beam Type 200/300kg. Features and Benefits:. Output impendence 350O. Input Impedance 400 ±20O. Safe overload 150% rated capacity. Ultimate overload 300% rated capacity. For use in tension and compression. 6 wire (sense) circuit. Bridge signal conditioners available separately. For Output signal conditioners see stock no. ; 470-272 470-272. Dimensions 62 x 80 x 18mm. The additional sense wires compensate for changes in lead resistance due to temperature changes and/or cable extension. Typical Applications:. Force measurement, material testing machines, conversion of mechanical scales to electronic, hanging scales, hoppers. FAQs:. What thread does it have? This is 1/2 Inch UNF
