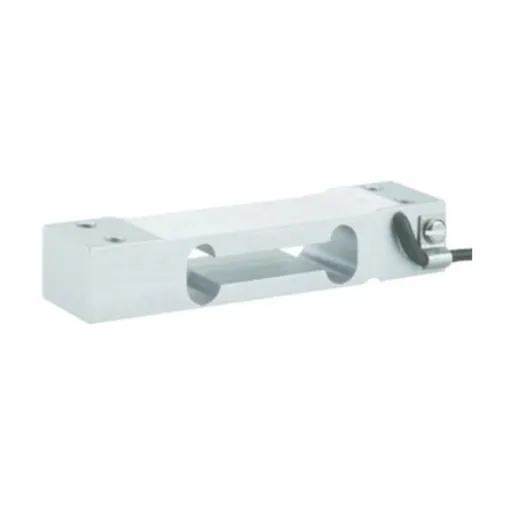

Tedea Huntleigh Low Profile Load Cell, 5kg Range, Compression Measure - 01022-005K-C3-14X
High accuracy low profile load cell for 5kg compression measurements, ideal for retail and bench scales.
Manufacturer part number: 01022-005K-C3-14X
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Force Measured = Compression
Force/ Load Measurement Range = 5kg
Sensor Type = Low Profile
Terminal Type = Cable
IP Rating = IP66
Housing Material = Aluminiummm
Depth = 25.4mm
Minimum Operating Temperature = -10 (Compensated) °C, -30 (Safe) °C
Maximum Operating Temperature = +40 (Compensated) °C, +70 (Safe) °C
Dimensions = 130 mm
Model 1022 is a low profile single-point load cell designed for direct mounting in low cost weighing platforms. Its small physical size, combined with high accuracy and Aluminium construction, makes this low cost load cell ideally suited for retail, bench and counting scales. Using 1022 load cells simplifies scale construction, which results in significant parts and labor savings. Model 1022 is available in a range of capacities.Capacities: 3–200 kg Only 22 mm high Aluminium construction Single-point 350 x 350 mm platform Applications Bench scales Counting scales Grocery scales
