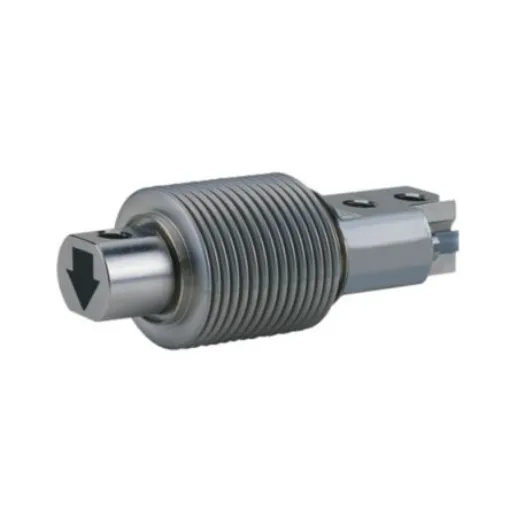

Tedea Huntleigh Low Profile Load Cell, 500kg Range, Compression Measure - 00355-500K-C3-13X
High accuracy low profile load cell for compression measurement, ideal for harsh environments.
Manufacturer part number: 00355-500K-C3-13X
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Force Measured = Compression
Force/ Load Measurement Range = 500kg
Sensor Type = Low Profile
Terminal Type = Cable
IP Rating = IP68
Housing Material = Stainless Steel
Minimum Operating Temperature = -10 (Compensated) °C, -20 (Safe) °C
Maximum Operating Temperature = +40 (Compensated) °C, +70 (Safe) °C
Dimensions = 120 mm
Model 355 is a welded bending load cell manufactured in stainless steel. Hermetically sealed against moisture the Model 355 construction and polyurethane shielded cable enables the load cell to function in harsh environments while maintaining its operating specifications. The low profile, high accuracy and sealing makes this load cell highly suitable for applications such as low profile platforms, weighing and packing machines, conversion of mechanical scales and variety of other applications where sealed cells are required. The two additional sense wires feed back the voltage reaching the load cell. Complete compensation of change in the lead resistance due to temperature change and/or cable extension, is achieved by feeding this voltage into the appropriate electronics.Capacities 5–500 kg Stainless steel construction Applications Low profile platforms Loss-in-weight feeders Marine and hybrid scales Belt weighers Food industry harsh environment
