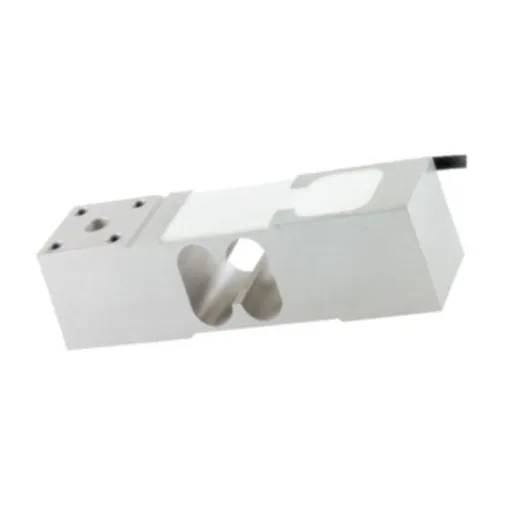

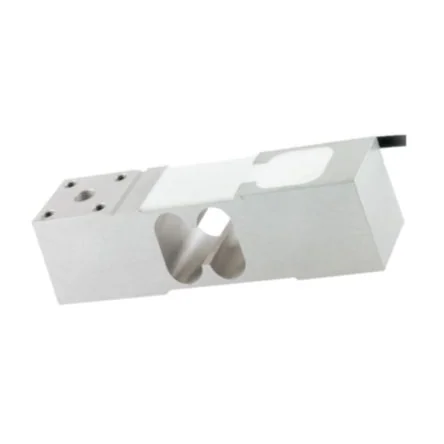

Tedea Huntleigh Low Profile Load Cell, 250kg Range, Compression Measure - 01242-250K-C3-08X
High accuracy low profile load cell for precise 250kg measurements in limited spaces.
Manufacturer part number: 01242-250K-C3-08X
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Force/ Load Measurement Range = 250kg
Sensor Type = Low Profile
Terminal Type = Cable
IP Rating = IP66
Housing Material = Aluminiummm
Depth = 38mm
Minimum Operating Temperature = -10 (Compensated) °C, -20 (Safe) °C
Maximum Operating Temperature = +40 (Compensated) °C, +70 (Safe) °C
Model 1242 is a high accuracy, low profile, low cost, two-beam, single-point load cell ideally suited for industrial application where space is limited. Typical applications include platforms, hanging scales and personal weighers. A special humidity resistant protective coating assures long-term stability over the entire compensated temperature range. The two additional sense wires feed back the voltage reaching the load cell. Complete compensation of changes in lead resistance due to temperature change and/or cable extension can be achieved by feeding this voltage into the appropriate electronics.Capacities 50–250 kg Aluminium construction Single-point 400 x 400 mm platform Applications Small platforms Hanging scales Personal scales
