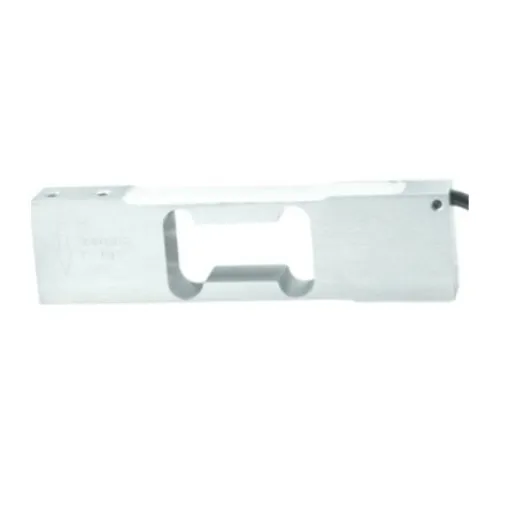

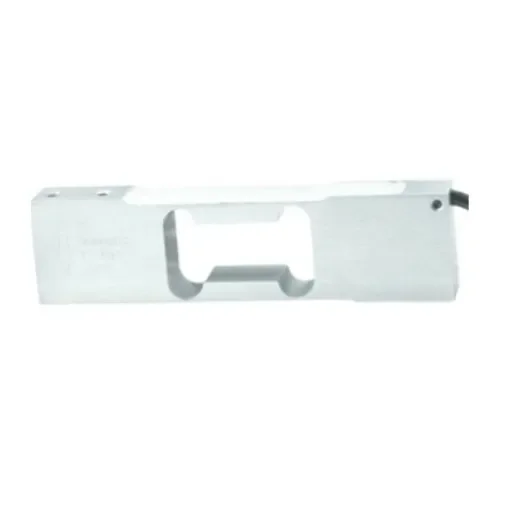

Tedea Huntleigh Low Profile Load Cell, 200kg Range, Compression Measure - 01042-200K-C3-05X

Model 1042 is a low profile single-point load cell designed for direct mounting in weighing platforms. Its small physical size, combined with high accuracy and low cost, makes this load cell ideally suited for retail, bench and counting scales. Capacities of 5 kg and above are supplied as standard in anodized Aluminium. A humidity resistant protective coating assures long-term stability over the entire compensated temperature range. The two additional sense wires feed back the voltage reaching the load cell. Complete compensation of changes in lead resistance due to temperature change and/or cable extenstion, is achieved by feeding this voltage into the appropriate electronics.Capacities 1–200 kg Aluminium construction Single-point 400 x 400 mm platform High stiffness version available for dynamic weighing applications Applications Bench scales Counting scales Grocery scales
