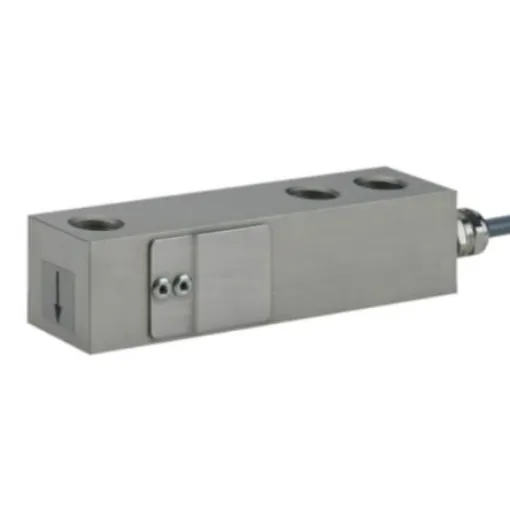

Tedea Huntleigh Low Profile Load Cell, 2000kg Range, Compression Measure - 03410-002T-C3-52X

Model 3410 is a low profile shear beam load cell designed for high accuracy platform scales, pallet scales and process weighing applications. It has high immunity to shock or side loading and is available in 2 or 3 mV/V sensitivity. Nickel plating and full environmental sealing assures long-term reliability. The two additional sense wires feed back the voltage reaching the load cell. Complete compensation of changes in lead resistance due to temperature change and/or cable extension is achieved by feeding this voltage into the appropriate electronics.Capacities 250–2000 kg and 1000–4000 lbs Steel and stainless steel construction Applications Low profile platforms Pallet truck weighing Tank and silo weighing
