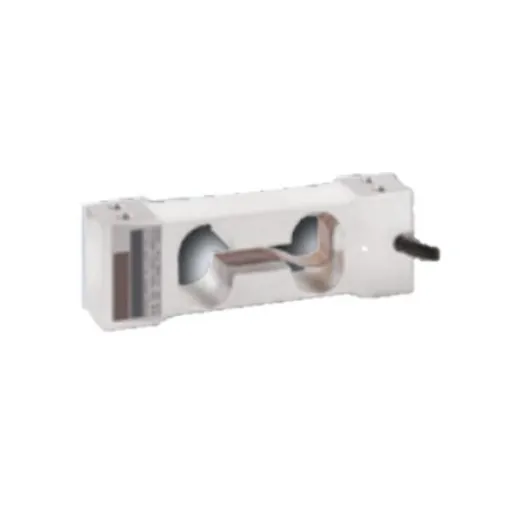

Tedea Huntleigh Load Cell, 3kg Range, Compression Measure - 01006-003K-G0-54X
High precision 3kg compression load cell ideal for scales and force measurement applications.
Manufacturer part number: 01006-003K-G0-54X
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Force Measured = Compression
Force/ Load Measurement Range = 3kg
Terminal Type = Cable
IP Rating = IP66
Housing Material = Aluminiummm
Depth = 15mm
Minimum Operating Temperature = -10 (Compensated) °C, -20 (Safe) °C
Maximum Operating Temperature = +40 (Compensated) °C, +70 (Safe) °C
Dimensions = 70 mm
Model 1006 is a very low capacity, high precision single-point load cell designed for direct mounting in low capacity scales. This load cell is suitable for applications including postal scales, counting scales, general-purpose weighing scales and is also suitable for a wide variety of force measurement applications, such as industrial process control or specialist medical devices. Model 1006 offers very high performance from a very small size. It is very easy to use, and easy to apply in a wide variety of applications, where the acting center of force application is within 100 mm of the load cell vertical axis.Capacities 2–5 kg Aluminium construction Single-point 200 x 200 mm platform Applications Bench scales Counting scales Grocery scales
