Tedea Huntleigh Load Cell, 2000kg Range, Compression Measure - 00620-002T-C3-08X

Force Measurement Range = 2000kg

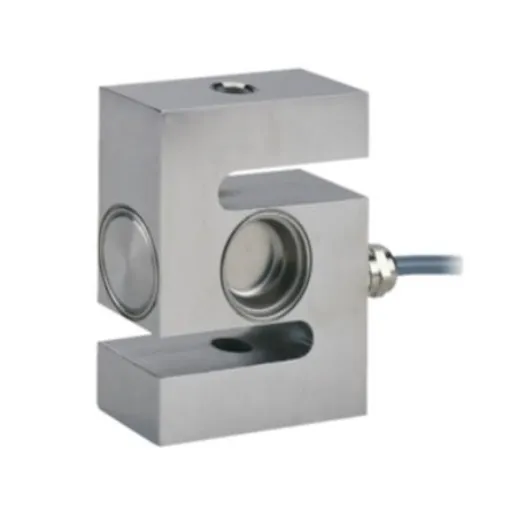

Model 620 is a stainless steel S-type load cell. Its welded sealing combined with high accuracy, make this load cell ideally suited for a wide range of applications of process weighing and force measurements. The six-wire cable includes two sense wires that compensate for changes in lead resistance due to temperature changes and cable extension.Capacity range: 500–5000 kg Stainless steel construction S-type design for use in tension and compression 6-Wire cable (sense circuit) Applications Hopper (tank Weighing) Hybrid scales Belt weighing Lever arm conversions Material testing machines Vibrations filling equipment Dynamometers
