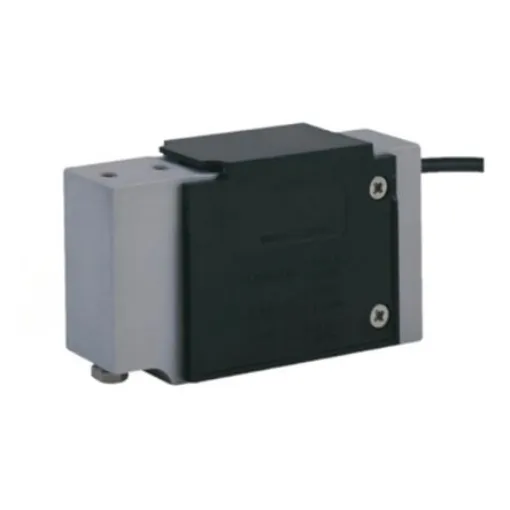

Tedea Huntleigh Load Cell, 10kg Range, Compression Measure - 01015-010K-G0-56X

Force Measured = Compression
Force/ Load Measurement Range = 10kg
Terminal Type = Cable
IP Rating = IP65
Housing Material = Aluminiummm
Depth = 33.5mm
Minimum Operating Temperature = -10 (Compensated) °C, -20 (Safe) °C
Maximum Operating Temperature = +40 (Compensated) °C, +70 (Safe) °C
Dimensions = 80 mm

Model 1015 is a single-point load cell designed for direct mounting of low cost, low capacity weighing platforms. Its use in large platforms, combined with its high accuracy and low cost, makes this load cell ideally suited for a large range of weighing applications, including bench scales and counting scales. A special humidity resistant protective coating is available which ensures long-term reliability. Model 1015’s built-in overload stop can provide mechanical protection against overloading. The two additional sense wires feed back the voltage reaching the load cell. Complete compensation of changes in lead resistance due to temperature change and/or cable extension is achieved by feeding this voltage into the appropriate electronics.Single point low capacity aluminium load cell.Capacities 3–90 kg Aluminium construction Single-point 400 x 400 mm platform Applications Bench scales Counting scales Grocery scales
