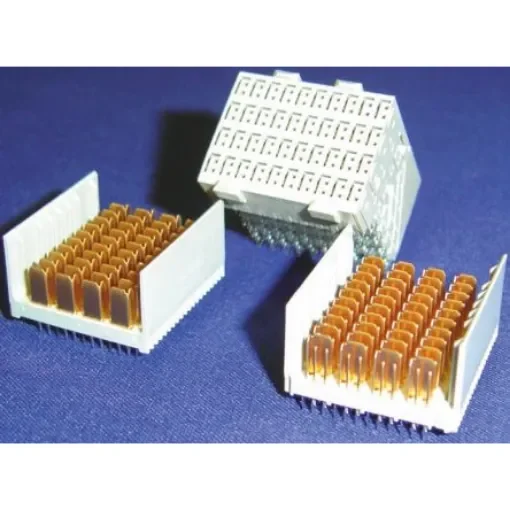

TE Connectivity, Z-PACK HM-Zd 2.5mm Pitch 4 Pair, High Speed Hard Metric Backplane Connector, Female, Right Angle, 10 - 6469001-1

Backplane Connector Type = 4 Pair, High Speed Hard Metric
Gender = Female
Number of Contacts = 80
Number of Columns = 10
Number of Rows = 8
Body Orientation = Right Angle
Housing Material = PET
Pitch = 2.5mm
Contact Material = Copper Nickel Silicon Alloy
Contact Plating = Gold over Nickel
Current Rating = 700mA
Voltage Rating = 250 V ac
Termination Method = Press-In
Series = Z-PACK HM-Zd
Minimum Operating Temperature = -65°C

PICMG. TE Connectivity Z-PACK™ HM-Zd Headers and Connector Assemblies. Z-PACK™ HM-Zd headers and connector assemblies with a 2.50mm centerline. These Z-PACK™ HM-Zd Pin headers and receptacle connector assemblies are press fit PCB through hole mounting and have polyester GF housings. HM-Zd is the backplane interconnect for PICMG 3.x (ATCA) industry standard High speed, differential, board to backplane electrical connectors Provides a differential solution for applications in the range 3 to 6.4 Gb/s Extension of IEC61076-4-101
