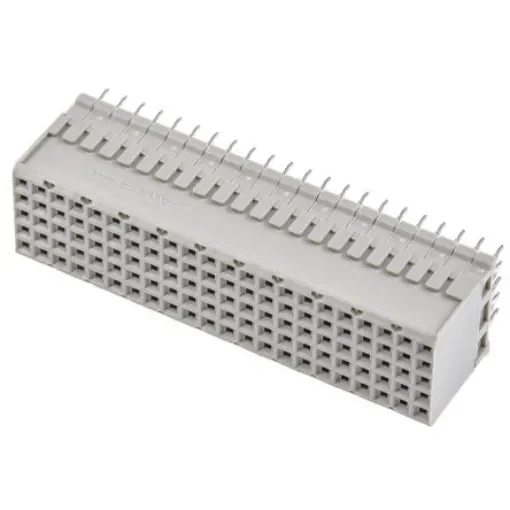

TE Connectivity, Z-PACK HM 2mm Pitch Hard Metric Type B Backplane Connector, Female, Straight, 22 Column, 5 Row, 110 - 5352268-1

Backplane Connector Type = Hard Metric Type B
Gender = Female
Number of Contacts = 110
Number of Columns = 22
Number of Rows = 5
Body Orientation = Straight
Housing Material = Glass Fibre Reinforced PBT
Pitch = 2mm
Contact Material = Phosphor Bronze
Termination Method = Solder
Series = Z-PACK HM
Series Number = 5352268

TE Connectivity Z-PACK™ HM 2mm Type B Backplane Connectors. Z-PACK™ HM 2mm Type B backplane right angle and vertical mounting header and receptacle connectors for a 2mm HM interface available as free or fixed board PCB mounting with ground return shielding options, ACTION PIN post contact options and various CompactPCI designation configurations, please refer to additonal data table for details. These Z-PACK™ Hard Metric Type B backplane connectors have UL 94V-0 polyester housings and offer standard crosstalk.
